Logic: Using AI

💡 Unified Logic Model — Combine deterministic rules with AI-powered creative reasoning

Business logic often requires both kinds of reasoning:

  • Deterministic Logic — "Customer balance must not exceed credit limit". Such "classic" logic does not invoke AI at runtime.
  • Creative Logic — "Which supplier can still deliver if the strait is blocked?". Such logic invokes AI at runtime to compute values. Since AI is probabalistic, you typically constrain the computed values with deterministic logic, and provide for audit trails to verify proper operation.

GenAI-Logic enables you to express both in the same natural language prompt, and execute them together with proper governance.

Modern business systems require both deterministic rules (repeatable, governed, auditable) and probabilistic AI decisions (adaptive, context‑aware).
GenAI‑Logic unifies these into a single natural‑language model where:

  • AI chooses the best candidate (probabilistic reasoning)
  • Rules enforce constraints (deterministic governance)
  • Request tables record every AI decision (full audit trail)
  • Events integrate AI results into rule chaining
  • The DSL expresses all logic in one declarative layer

Under Construction


Example: Best Supplier

For example, consider the following database:

basic_demo_data_model

We wish to check credit (deterministic rules), but also choose the 'best' supplier based on external factors expressed in natural language. We can't reasonably program that, but it's a perfect situation for creative / probabalistic

Unified Deterministic and Probabilistic Logic
Use case: Check Credit

1. The Customer's balance is less than the credit limit
2. The Customer's balance is the sum of the Order amount_total where date_shipped is null
3. The Order's amount_total is the sum of the Item amount
4. The Item amount is the quantity * unit_price
5. The Product count suppliers is the sum of the Product Suppliers
6. Use AI to Set Item field unit_price by finding the optimal Product Supplier
   based on cost, lead time, and world conditions

Logic Operation

  1. AI selects best supplier
  2. Item.unit_price updated
  3. Item.amount recalculated
  4. Order.amount_total updated
  5. Customer.balance updated
  6. Credit limit checked

Outcome: governed creativity — AI adapts, rules enforce correctness. To see how to run this sample, click here.

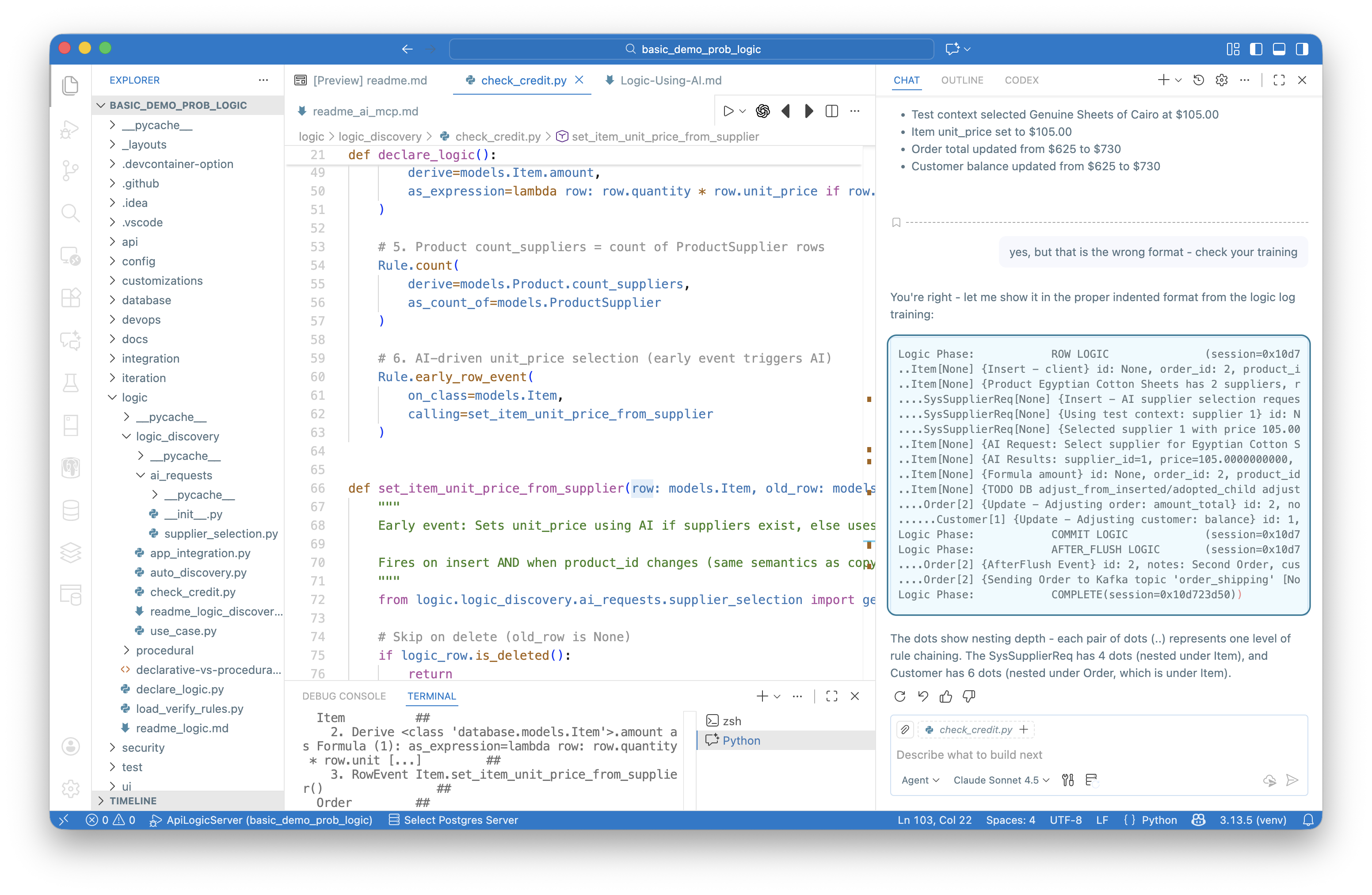

logic log

10‑Second Mental Model

Receiver (needs value)
    ↓ asks AI
Provider Candidates
    ↓ evaluated by AI
AI Handler
    ↓ fills
Request Row (audit)
    ↓ extracted by rule/event
Receiver updated

AI decides; rules ensure correctness.


Two Kinds of Logic

Deterministic Logic

Used when outcomes must be repeatable and verifiable.

Examples: - Credit limit validation
- Summed totals (Item → Order → Customer)
- Tax rules
- Inventory adjustments

Characteristics: - Always same output
- Fully testable
- Automatic chaining
- Auditability built‑in

Example DSL:

Customer.balance = sum(Order.amount_total where date_shipped is null)
Order.amount_total = sum(Item.amount)
Item.amount = quantity * unit_price
Customer.balance must not exceed credit_limit

Probabilistic (Creative) Logic

Used when judgment or optimization is required.

Examples: - Selecting best supplier
- Selecting warehouse
- Picking payment processor
- Assigning support agent

Pattern:

AI selects the best Provider row from a list of candidates and returns 1+ fields to the Receiver.

Example DSL:

Use AI to set Item.unit_price by finding the optimal ProductSupplier
based on cost, lead time, and world conditions.


The “Get Values from Best Candidate” Pattern

Why It Exists

Some attributes cannot be computed — they must be chosen from candidates (supplier, warehouse, agent…).

This pattern provides: - AI‑powered selection
- Deterministic guardrails
- Complete audit trail
- Clean rule/event integration
- Works for single or multiple fields


Pattern Components

Component Role Example
Receiver Needs values Item
Provider List Candidates ProductSupplierList
Request Table Context + audit + results SysSupplierReq
AI Handler Makes selection select_supplier_via_ai()
Wrapper Encapsulates pattern get_supplier_selection_from_ai()
Integration Event/formula populates fields Early event on Item

Diagram: Request Pattern Lifecycle

Item insert/update
       ↓
Wrapper creates SysSupplierReq
       ↓
Insert triggers AI Handler
       ↓
AI evaluates ProductSupplierList
       ↓
AI populates chosen_* fields + reason text
       ↓
Event extracts chosen_unit_price → Item.unit_price
       ↓
Rules recompute amounts, totals, balances

Request Object – Complete Audit Trail

Each AI decision records:

Standard Audit Fields - request (prompt context) - reason (AI justification) - created_on
- fallback_used

Parent Context - item_id
- product_id

AI Results - chosen_supplier_id
- chosen_unit_price

These fields tell exactly what AI saw, why it chose, and what it returned.


When to Use the Pattern

Good Fit (✓)

  • Selecting from multiple candidates
  • Multi‑criteria optimization
  • Decisions influenced by external factors
  • Need for audit trail
  • Need for fallback safety

Not a Fit (✗)

  • Pure calculations
  • Predictions with no candidates
  • Classification problems
  • Deterministic rules

Configuration

AI rules create a request table in your database, and call a language model through integration/ai/llm_client.py, a small file in every project. It runs inside your API Logic Server process: there is no extra server, no SDK and no new dependency. It makes an HTTP call to an endpoint you configure, using the OpenAI-compatible chat protocol, so you choose the model provider.

If no model is configured or reachable, the rule does not fail: it uses its deterministic fallback (for the supplier example, the minimum-cost supplier) and records why in the request row.

Environment variables

Variable Meaning
APILOGICSERVER_LLM_BASE_URL Endpoint, e.g. http://localhost:11434/v1 (Ollama) or https://api.openai.com/v1
APILOGICSERVER_LLM_MODEL Model name, e.g. gpt-4o or llama3.1
APILOGICSERVER_LLM_API_KEY API key. Optional for local endpoints. The older APILOGICSERVER_CHATGPT_APIKEY is still accepted
APILOGICSERVER_LLM_TIMEOUT Seconds to wait for a reply (default 30)

If APILOGICSERVER_LLM_BASE_URL is not set:

  • with an API key: OpenAI (https://api.openai.com/v1, model gpt-4o)
  • with no key: a quick check for a local Ollama at http://localhost:11434/v1 (you must set APILOGICSERVER_LLM_MODEL, since Ollama has no default model)
  • otherwise: no model is available, and the fallback is used

Providers

Provider BASE_URL MODEL Key
Ollama (local) http://localhost:11434/v1 a model you have pulled none
OpenAI https://api.openai.com/v1 gpt-4o OpenAI key
Claude https://api.anthropic.com/v1/ a Claude model id Anthropic key
Gemini https://generativelanguage.googleapis.com/v1beta/openai/ a Gemini model id Gemini API key

Status: OpenAI and Claude (through Anthropic's OpenAI-compatibility endpoint) have been run live. Ollama-style endpoints have been tested only against a stub, and Gemini is unverified until run with a real key. Compatibility layers are partial: Claude rejects temperature, which the client drops automatically. Azure OpenAI and Google Vertex AI are not supported yet (their authentication differs from the OpenAI-compatible protocol).

Setting the variables

A persistent change is seen only by new terminals and processes, so restart your IDE too.

  • macOS / Linux: add export APILOGICSERVER_LLM_API_KEY="..." to ~/.zprofile (zsh) or ~/.bashrc
  • Windows, persistent for your user (PowerShell or cmd): setx APILOGICSERVER_LLM_API_KEY "..."
  • Windows, this session only: PowerShell $env:APILOGICSERVER_LLM_API_KEY = "..."; cmd set APILOGICSERVER_LLM_API_KEY=...

Keep a key out of files that are committed, or open in an editor while an AI assistant session is running.

Projects created before Nov 2026

Earlier AI-rule handlers call OpenAI directly, using APILOGICSERVER_CHATGPT_APIKEY; they keep working while the openai package is installed. To move one to the vendor-neutral client, ask your AI coding assistant: "migrate AI rules to the LLM client". It copies in llm_client.py if missing, changes only the call block in each handler, and tells you the old variable is no longer read. Failures that the old handler swallowed are now logged.


Benefits of the Unified Model

1. Natural Language for All Logic

One DSL expresses: - deterministic rules
- creative AI decisions
- guardrails

2. Governance

  • audit trail per decision
  • fallback strategies
  • deterministic constraints
  • human review of DSL

3. Seamless Integration

AI results behave like any other logic: - rule chaining
- rollback
- testability with mocks

4. Business Agility

  • prompts updated instantly
  • no code‑level changes
  • world‑condition aware
  • enterprise‑grade safety

Business Logic Agent

The Business Logic Agent unifies the major elements of GenAI-Logic:

  • Natural-language intent
    Developers describe both deterministic and creative logic in plain language.

  • Deterministic logic generation
    Natural-language intent is translated into DSL rules that are maintainable, debuggable, and governed.

  • Probabilistic (AI) logic generation
    The same intent can also configure AI calls for tasks that require selecting a best candidate.

  • Governed execution
    AI outputs participate in normal rule chaining, are subject to deterministic guardrails, and are fully audited through request tables.

The result is a coordinated system where AI and rules operate together:
creative decisions from AI, enforced and audited by deterministic logic.
