Welcome to GenAI-Logic

One prompt — or your existing database — builds a working API and Admin App, then you declare business logic in 5 readable rules instead of ~200 lines of AI-generated code to enforce it.

You'll see that enforcement yourself in a few minutes: those rules run at one commit point, no matter which path the transaction came in on — API, MCP, agent, Kafka. No bypass.

And you're not alone: your AI assistant is your partner throughout. Ask it anything — architecture, rules, debugging, deployment, or how the system works.

This is the start page for the GenAI-Logic Manager — where you manage projects, create notes and resources, etc.



🤖 AI Assistance

First select your AI assistant, then paste the prompt below



We get consistently good results with Claude Sonnet 4.6 (GitHub Copilot or Claude Code extension). "Ask" mode will not work — use Agent mode.

To select Sonnet 4.6 in the Copilot chat panel: click Agent → the gear icon → choose Claude Sonnet 4.6.

For more information, see AI-Enabled Projects or click here.



Please load `.github/.copilot-instructions.md`.



🚀 First Time Here?

⚡ Try Prompt → System — then ask: is this maintainable?



  1. Create — API, Admin App and business logic from a prompt (existing db)

Say this to your AI assistant (allow 2-3 mins):

Create basic_demo from samples/dbs/basic_demo.sqlite (customers, orders, products).

Include a notes field for orders.

On Placing Orders, Check Credit
    1. The Customer's balance is less than the credit limit
    2. The Customer's balance is the sum of the Order amount_total where date_shipped is null
    3. The Order's amount_total is the sum of the Item amount
    4. The Item amount is the quantity * unit_price
    5. The Item unit_price is copied from the Product unit_price

Use case: App Integration
    1. Publish the Order to Kafka topic 'order_shipping' if the date_shipped is not None.

Starting from a new database instead?

  The prompt above starts from an existing database — the common real-world case, and much faster (no schema design step). You *could* have AI design a new database from scratch instead — drop the `from samples/dbs/basic_demo.sqlite` clause from the first line above (allow 8-10 mins).

  You've probably seen AI generate code before. The difference here: this produces *models*, not code — each artifact declares structure or policy rather than procedure, so there's no logic buried in the wiring: 1. **Data model** — `database/models.py` 2. **Full JSONAPI** — Swagger, pagination, optimistic locking (`api/expose_api_models.py` — 52 lines, zero per-table code) 3. **Admin App** — multi-table, with navigations and lookups (`ui/admin/admin.yaml`) 4. **Business logic** — `logic/logic_discovery/place_order/check_credit.py` *(more on this in step 5)* Each small, readable, yours. Plain Python — standard tooling applies. Security is opt-in, not default — bootstrap RBAC anytime with `genai-logic add-auth`.

  2. Run it — F5, then open the Admin App

Press F5 using "API Logic Server Run (run project from manager)", and open the Admin App. Explore the API via Swagger, browse the data, and follow the relationships — all auto-generated from the data model.

  3. Trigger the logic

In the Admin App, open Order 2 / Alice, edit the Widget item:

Change the quantity to a very large number. Save.

The save fails - note the dialog box. But, *why...?* > Auditable, not just shown: [sample trace](samples/basic_demo_logic_gov/logs/als-sample.log) of this rule chain firing.

  4. Your AI assistant can explain the dialog

Eeks, why did that save fail?

Your AI explains the credit-limit rule and shows where it lives. Notice: you didn't *place* an order, you *edited* one — and the rule still caught it. Hmm....

  5. Now let's see... what's really going on with the logic?

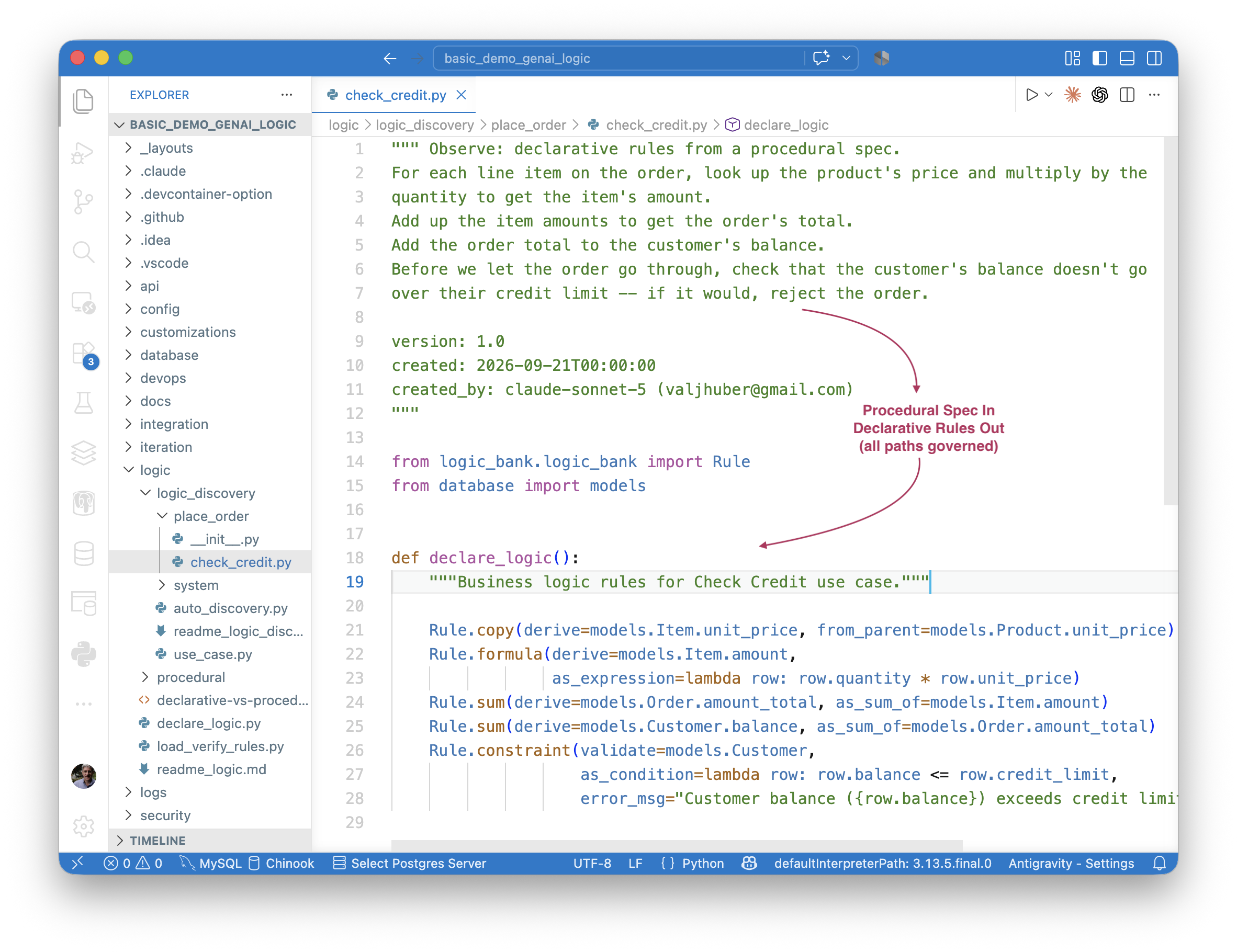

Open [procedural/credit_service.py](samples/basic_demo_logic_gov/logic/procedural/credit_service.py) — real, AI-generated code for the credit-check requirement. Then open [logic_discovery/place_order/check_credit.py](samples/basic_demo_logic_gov/logic/logic_discovery/place_order/check_credit.py) — same requirement, same AI. 5 rules. No bugs. Well, *that's* different... what's up with that? Ask your AI:

What are rules?

    No AI handy?

Rules enforce business policy — multi-table derivations, constraints, and actions like messaging. **LogicBank**, the rule engine, hooks SQLAlchemy's commit event to run them on every transaction — authored as plain Python functions in `logic/logic_discovery/`, readable, version-controlled, owned like any other source file. But unlike procedural code, they're **declarative**: | Property | What it means | Why it matters | |---|---|---| | **Auto-reused** | `Customer.balance = sum of unpaid orders` — declared once, enforced over every change path | No per-path handlers to write or miss | | **Auto-invoked** | Rules fire at every commit, from every caller — you never call them | Can't be forgotten, can't be bypassed | | **Auto-ordered** | The engine computes dependency order at startup | Add a rule anywhere, it finds its place | Think of a spreadsheet: `B10 = SUM(B1:B9)`, and every recalculation just happens. Rules work the same way for database transactions — that's what makes 5 declarative rules replace ~200 lines of procedural code with zero missed paths, as you just saw above. Full writeup: [declarative/procedural comparison](samples/basic_demo_logic_gov/logic/procedural/declarative-vs-procedural-comparison.md).

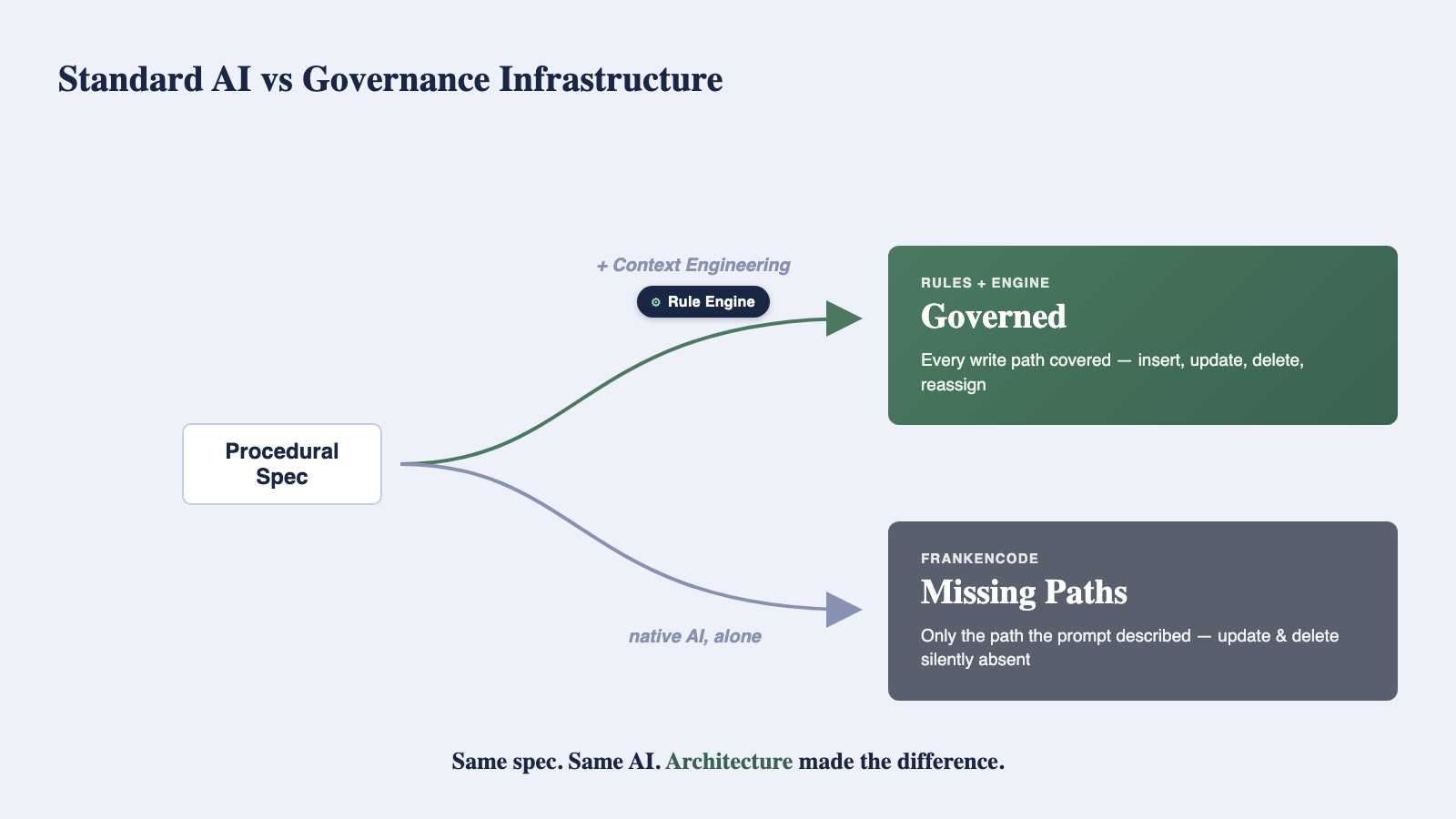

> But here's the part that matters beyond line count: with procedural code, even if you find the right passage — how do you know it's called for every transaction source? API, MCP, agent, Kafka, a future caller you haven't written yet? With thousands of code paths, you can't know. That's not a testing gap; it's a representation problem.

Rules solve it structurally — declared once, fired at one commit point, from every caller, with no bypass possible. The 40x reduction in code isn't the point. The verifiable coverage is: ***you can read the rules, and trust they are being enforced. Always.***

  6. Iterate — ask for a new rule in plain English

Try:

Customers should not be able to create new orders if they have unresolved past due letters.

Notice what just happened — two things, easy to miss: **1. What the AI did.** There was no `Letter` (past-due notice) table in the model — the AI had to add the table and its relationship to `Customer`, then declare two rules: a `count` of unresolved letters, and a `constraint` blocking new orders when that count is non-zero. A schema change and two rules, from one sentence. **2. The implications:** - **You didn't do archaeology.** No opening `check_credit.py` to find where this belongs, no tracing the other 5 rules to check for conflicts. Auto-ordering means there's no maintenance hunt — you declare the rule, the engine places it. - **AI-only would have to rebuild — and that cost scales with rule count.** Without the engine, an AI rewriting procedural code from scratch would have to re-read and re-touch all existing rules to check for dependencies — more surface area for a missed path, more tokens spent doing it. At 5 rules that's a nuisance; **at 500, the re-read is the bottleneck and the missed-path risk compounds.** Here, the engine resolves dependencies at load time, so adding this rule doesn't touch the rest — no regeneration, no regression risk, at any scale.



🚀 How does this lead to enterprise-class systems?

Quick recap: you created a system from prompt, ran it, triggered a rule, watched it chain across three tables, driven by 5 lines of code, then added a new one from one sentence — without touching the existing rules.

That's the second distinction from AI-generated code: the business logic is rules, not procedures. A procedure answers "what happens when X?" — so every new path needs a new procedure. A rule declares a fact about data — it's automatically re-used over every path, including ones that don't exist yet. Step 5 showed this working; step 6 showed it not breaking when you added one. That property is what scales.

How does this lead to enterprise-class systems?

We add key enterprise architecture:

• Enterprise Integration (EAI) — the demo above showed Publish the Order to Kafka topic. For the subscribe side, see samples/basic_demo_eai/readme.md: B2B orders from partner systems, via a Custom API or Kafka subscriber, including lookups so partners send "Account": "Alice" (not internal IDs).

• MCP — your API is MCP-discoverable out of the box (/.well-known/mcp.json). Copilot, Claude, or ChatGPT can find the schema and answer natural-language queries against it. There's no discovery layer for you to write — see samples/basic_demo_ai_rules-supplier/readme_ai_mcp.md

• AI Rules — rules that call AI for genuinely judgment-call decisions (e.g. picking a supplier under disrupted shipping lanes). Such AI "proposals" are governed by the deterministic rules to ensure results conform to business policy — see samples/basic_demo_ai_rules-supplier/readme.md

That combination — AI, logic automation, and that enterprise architecture — is what enables Executable Requirements: AI building real enterprise-class systems, from formats you already are familiar with, not a new syntax to learn:

• Gherkin-style scenarios — business description, and the actual requirements used by AI to create the system.

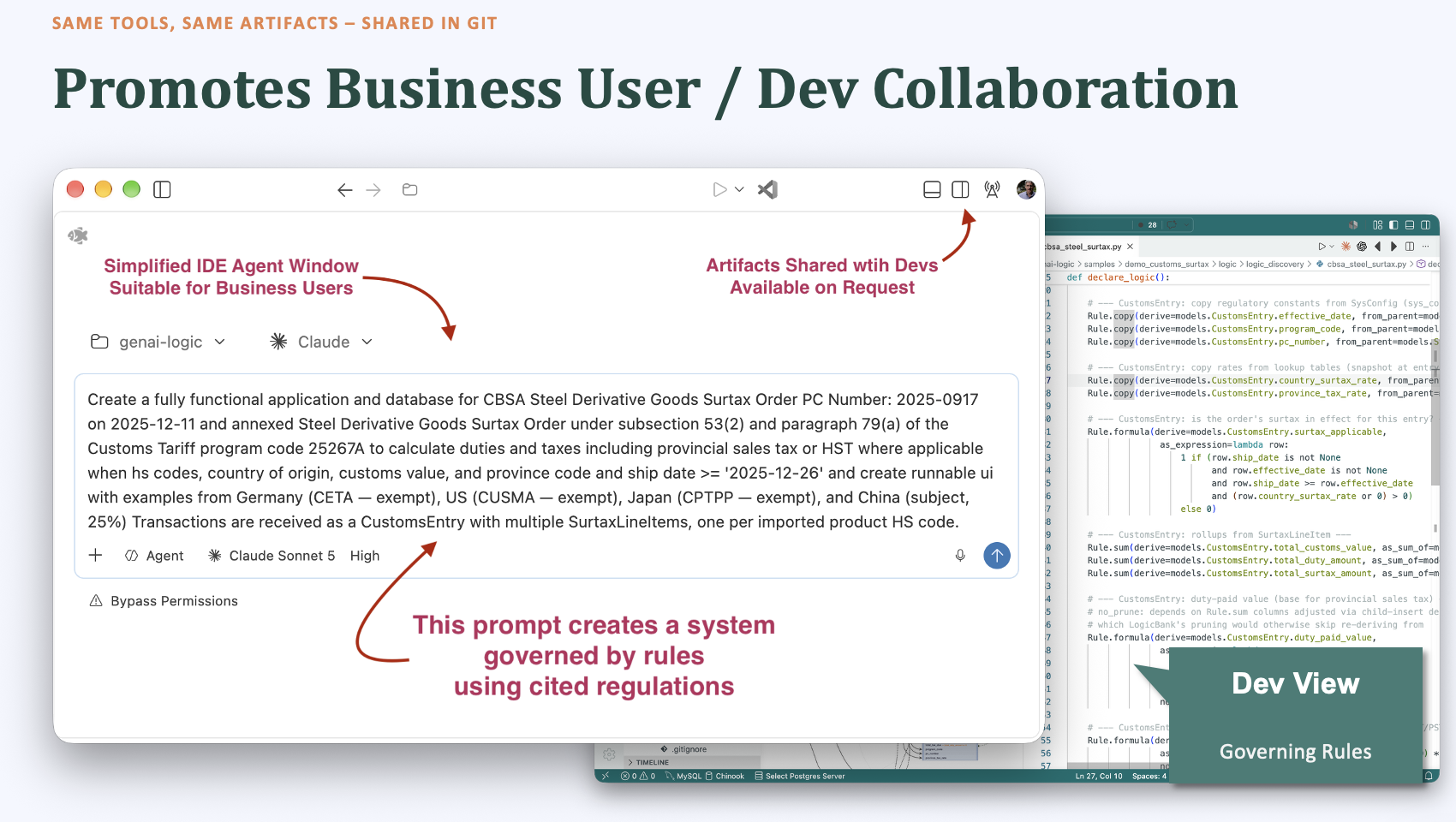

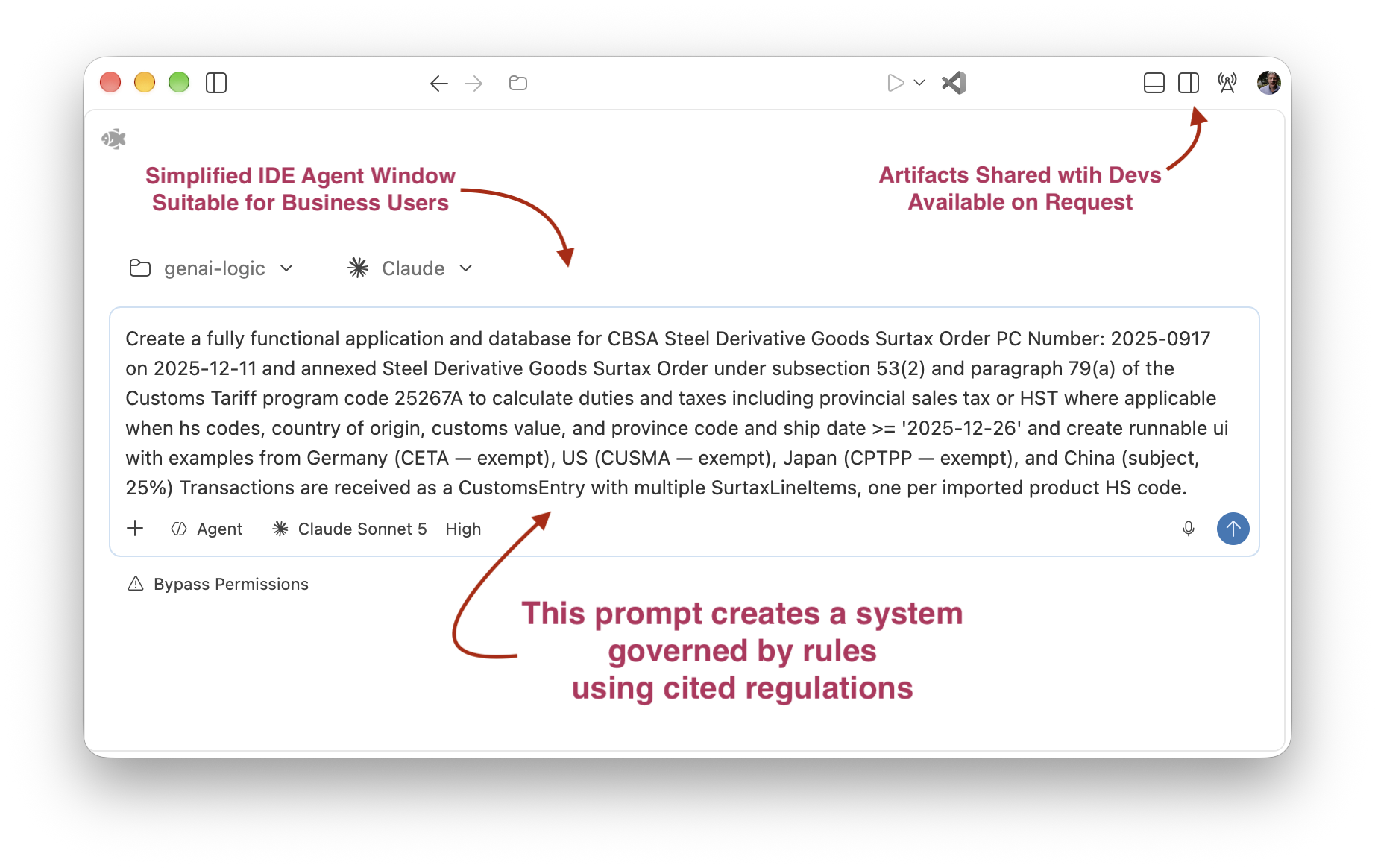

• The short prompt that built a system straight from an actual government tariff regulation (Canada, CBSA) — the prompt, and the rules it produced

  So, simply by referencing the regs, you get a complete enterprise system — including governed logic you can audit, trust, and maintain.



The architecture that makes this work: two funnels, converging on one engine. All requirement formats, and all transaction sources, passing through the same commit point. No bypass.

What AI delivers, once logic is off its plate: entire, governed systems from requirements — not just code that becomes instant tech debt. It is this approach that caught an 8-figure compliance exposure a major logistics company's hand-coded system missed for months. Full writeup →



🔧 An LLM trained on procedural code — how'd it end up writing rules, not code?

It didn't figure that out on its own. It was told to, in detail, by Context Engineering — the same files driving this conversation right now:

• Directs rules, not code. When you ask for business logic, CE steers the AI toward the right rule type (sum vs. count vs. Allocate vs. Request Pattern) for what you actually asked for, instead of letting it default to the procedural code it's seen a million times in training.

• Trains the AI to automate everything above, and to help you when it breaks. EAI's 2-message Kafka pattern, the AI/Request Pattern wiring, Executable Requirements' pre-coding schema assessment — all of it is documented training material (docs/training/*) the AI reads before writing your code, not generic knowledge it's guessing from. Ask "what are rules?" or "how do rules work?" — or, without an AI handy, just read samples/basic_demo_logic_gov/logic/readme_logic.md — same material.

The AI was trained on this material — can you trust its answers?

Don't take them on faith. Ask the same question a different way, or ask something not covered here — like where this architecture breaks down. If it just recites the same lines back, you've caught it. If it reasons, that's the test passing.

The "can't be bypassed" claim, named: rules aren't called from your code — they're wired into a single SQLAlchemy before_flush listener, installed once at server start. Every write, from any path — API, custom endpoint, Kafka consumer, agent — passes through that one listener before it commits. There's no second door.

This is why the same prompt produces a governed system, not a working-but-ungoverned demo. Details: 3-Legged Stool.

Have some questions before we get started? Ask your AI assistant directly — it has the same materials we just walked through:

• Is this really infrastructure, like a database?
• Is this a black box? How do I debug a rule chain?
• What does it take to migrate off this if we ever wanted to?
• How does this perform at scale?
• What does this integrate with — APIs, workflows, agents, MCP?
• Does this work with my existing database?

More background: Eval Guide.



🔑 Why not just let AI write the code?

Even if AI generates perfect procedural code — and it doesn't, reliably — you still have a governance problem.

5 declarative rules are readable. Auditable. The next developer can understand them, compliance can sign off on them, and when something goes wrong you can debug them. That's not a convenience — it's a requirement.

Our A/B test on a 3-table system measured this directly: 5 declarative rules vs. ~200 lines of AI-generated procedural code — a ~40X reduction. That reduction compounds: a larger system needs proportionally more procedural code to cover the same change paths, while the rule count grows with the requirements, not with the paths. Code nobody can read, verify, or safely change. Unreadable at scale is ungovernable at scale.

And there's a structural problem underneath: procedural code cannot represent transitive dependencies reliably. The AI diagnosed this itself — "Business logic is not a coding problem. It's a dependency graph problem." That's not a capability gap. No amount of AI capability fixes a representation problem.

You already saw the evidence for this above — the two files side by side. This is why that comparison exists.

The full case — with the A/B test, the governance argument, and the scalability problem — is at Why GenAI-Logic.



🔨 Go deeper — 30-45 min guided tour



Create basic_demo (auto-opens with guided tour option):

genai-logic create --project_name=basic_demo --db_url=sqlite:///samples/dbs/basic_demo.sqlite

Inside the project: Say to your AI assistant: "Guide me through basic_demo" (30-45 min hands-on tour).

Teaches API creation, declarative rules, security, and Python customization. Fail-safe — scripts ensure no coding errors.





📚 Build It Yourself — Demo Catalog

The section above showed you pre-built samples to browse. These are the same use cases, but as commands you run yourself — paste one into your AI assistant and it builds that project for you, live.

Tip: every project is AI-enabled — once it's built, ask your AI assistant how it works



1. Strategic Use Cases (From genai-logic.com)

Explore the key use cases from our home page:

Use Case	Say to your AI / Run	What You'll Learn
Allocation with AI Rules demo_allo_dept_gl	create demo_allo_dept_gl from samples/prompts/allocation.prompt.md or genai-logic create --project_name=demo_allo_dept_gl --db_url=sqlite:///samples/dbs/starter.sqlite	- Cascade Allocation (Costs to Depts/GL) - AI Rules for fuzzy match to project
Use Case 1: AI Rules demo_ai_rules_supplier	genai-logic create --project_name=demo_ai_rules_supplier --db_url=sqlite:///samples/dbs/basic_demo.sqlite	- Use AI Rules (req pattern) to choose Optimal Supplier, per world conditions
Use Case 2: Governed MCP Server demo_mcp_send_email	genai-logic create --project_name=demo_mcp_send_email --db_url=sqlite:///samples/dbs/basic_demo.sqlite	- Bus Users compose new service to send email to overdue customers, subject to email opt-out rules - Create custom API with NL - Create an email service (req pattern)
EAI: Enterprise App Integration demo_eai	genai-logic create --project_name=demo_eai --db_url=sqlite:///samples/dbs/basic_demo.sqlite	- Executable Requirements - Create custom API with NL - Create Kafka Listener with NL
Use Case 4: Vibe Dev Backend demo_vibe	genai-logic create --project_name=demo_vibe --db_url=sqlite:///samples/dbs/basic_demo.sqlite	- UI elements, eg, Cards, Maps, Trees...
Use Case 5: Business Users webgenai	See webgenai/ in this Manager	- Create systems from browser, with logic, sample data and derived attributes
Customs CLVS demo_customs_clvs	genai-logic create --project_name=demo_customs_clvs --db_url=sqlite:///samples/requirements/customs_demo_clvs/database/customs.sqlite	- Governed Business Systems - EAI (using XML), textual requirements
Customs Surtax demo_customs_surtax	implement project demo_customs_surtax from samples/prompts/customs_cbsa.prompt.md	- New Business System from Regulations



Running a cloned project? F5 won't work until the venv is set up — see Project-Env for options (genai-logic run, symlink, or local venv).



2. Additional Demos

Advanced examples and specialized patterns:

Demo	Say to your AI / Run	What You'll Learn
Executable Requirements	See samples/requirements/readme_reqmts.md	Create from Gherkin requirements implement reqs
New system from prompt	genai-logic genai --using=samples/prompts/genai_demo.prompt	Create systems from prompt Like WebGenAI, but from IDE
Coding Samples	code samples/nw_sample	Useful code examples Search: #als
MCP Discovery demo_copilot_mcp_discovery	genai-logic create --project_name=demo_copilot_mcp_discovery --db_url=sqlite:///samples/dbs/basic_demo.sqlite	test rules via Copilot access to MCP Server

Copy Snippets for venv:

Copy Snippets for venv

source venv/bin/activate       # windows: venv\Scripts\activate
source ../venv/bin/activate    # windows: ../venv\Scripts\activate
python -m venv venv            # may require python3 -m venv venv



Appendices

GenAI CLI (requires an OpenAI key)

Everything above — the walkthrough, the samples, Demo Catalog — runs through your AI assistant (Copilot/Claude), no separate signup. The genai-logic genai CLI commands below predate that: they call OpenAI's API directly, which means you need your own OpenAI account and key (see Get an OpenAI Key, below) and pay for usage.

That's real friction most readers don't need to take on — the AI-assistant path covers the same ground. This section is kept for completeness: scripted/CI use, or specific model-iteration workflows the AI-assistant path doesn't (yet) replicate.

1. New Database - using GenAI Microservice Automation (Experiment with AI - Signup optional)

You can do this with or without signup:

1. If you have signed up (see Get an OpenAI Key, below), this will create a new database and project called genai_demo, and open the project. It's created using genai_demo.prompt, visible in left Explorer pane:

genai-logic genai --using=system/genai/examples/genai_demo/genai_demo.prompt --project-name=genai_demo

2. Or, you can simulate the process (no signup) using:

genai-logic genai --repaired-response=system/genai/examples/genai_demo/genai_demo.response_example --project-name=genai_demo

Verify it's operating properly:

1. Run Configurations are provided to start the server
2. Verify the logic by navigating to a Customer with an unshipped order, and altering one of the items to have a very large quantity
3. Observe the constraint operating on the rollup of order amount_totals.
   • View the logic in logic/declare_logic.py
   • Put a breakpoint on the as_condition. Observe the console log to see rule execution for this multi-table transaction.

What Just Happened?    Next Steps...

genai processing is shown below (internal steps denoted in grey):

1. You create your.prompt file, and invoke genai-logic genai --using=your.prompt. genai then creates your project as follows:

   a. Submits your prompt to the ChatGPT API

   b. Writes the response to file, so you can correct and retry if anything goes wrong

   c. Extracts model.py from the response

   d. Invokes genai-logic create-from-model, which creates the database and your project

2. Your created project is opened in your IDE, ready to execute and customize.

   a. Review Tutorial, Explore Customizations.

You can iterate the logic and data model

The approach for an iteration is to create a new project from an existing one:

1. add another prompt to an existing projects docs directory, specifying your changes
2. use genai-logic genai, specifying
   • --using existing projects docs directory, and
   • --project-name as the output project

Logic iterations are particularly useful. For example, here we take the basic check-credit logic, and add:

Provide a 10% discount when buying more than 10 carbon neutral products.

The Item carbon neutral is copied from the Product carbon neutral

Explore genai_demo_iteration_discount. It's an iteration of basic_demo (see system/genai/examples/genai_demo/genai_demo_iteration_discount/002_create_db_models.prompt). This will add carbon_neutral to the data model, and update the logic to provide the discount:

Iterate Business Logic:

Iterate Business Logic

# Iterate with data model and logic
genai-logic genai --project-name='genai_demo_with_discount' --using=system/genai/examples/genai_demo/genai_demo_iteration_discount
# open Docs/db.dbml

You can perform model iterations: add new columns/tables, while keeping the prior model intact. First, we create a project with no logic, perhaps just to see the screens (this step is optional, provided just to illustrate that iterations create new projects from existing ones):

Iterate Without Logic:

Iterate Without Logic

# Step 1 - create without logic
genai-logic genai --project-name='genai_demo_no_logic' --using=system/genai/examples/genai_demo/genai_demo_no_logic.prompt
# open Docs/db.dbml

Then, we would create another prompt in the docs directory with our model changes. We've already created these for you in system/genai/examples/genai_demo/genai_demo_iteration - we use that to alter the data model (see system/genai/examples/genai_demo/genai_demo_iteration/004_iteration_renames_logic.prompt):

Iterate With Logic:

Iterate With Logic

# Iterate with data model and logic
genai-logic genai --project-name='genai_demo_with_logic' --using=system/genai/examples/genai_demo/genai_demo_iteration
# open Docs/db.dbml

Explore genai_demo_iteration - observe the --using is a directory of prompts. These include the prompts from the first example, plus an iteration prompt (004_iteration_renames_logic.prompt) to rename tables and add logic.

You can declare informal logic

You can declare rules using dot notation, or more informally:

Informal Logic (no dot notation):

Informal Logic (no dot notation)

genai-logic genai --using=system/genai/examples/genai_demo/genai_demo_informal.prompt --project-name=genai_demo_informal

Multi-Rule Logic

You can add new columns/tables, while keeping the prior model intact:

Multi-Rule Logic:

Multi-Rule Logic

genai-logic genai --using=system/genai/examples/emp_depts/emp_dept.prompt

You can ask AI to suggest logic (great way to learn!)

You can create a project, and ask GenAI for logic suggestions:

1. Create Project, without Rules:

1. Create Project, without Rules

# 1. Create Project, without Rules
genai-logic genai --project-name='genai_demo_no_logic' --using=system/genai/examples/genai_demo/genai_demo_no_logic.prompt

2. Request Rule Suggestions:

2. Request Rule Suggestions

# 2. Request Rule Suggestions
cd genai_demo_no_logic
genai-logic genai-logic --suggest

You can review the resultant logic suggestions in the genai_demo_no_logic project:

• See and edit: docs/logic_suggestions/002_logic_suggestions.prompt (used in step 3, below)
  • This corresponds to the Logic Editor - Logic View in the WebGenAI web app

3. See the rules for the logic:

3. See the rules for the logic

# 3. See the rule code for the logic
genai-logic genai-logic --suggest --logic='*'

Important notes about suggestions and generated code: * --suggest --logic='*' is intended to enable you to identify logic that does not translate into proper code * The example above was pretty good, but sometimes the results are downright silly: * Just run suggest again, or * Repair docs/logic_suggestions/002_logic_suggestions.prompt

Also... * It is not advised to paste the code into logic/declare_logic.py * The suggested logic may result in new data model attributes * These are created automatically by running genai-logic genai (next step)

The logic suggestions directory now contains the prompts to create a new project with the suggested logic.
When you are ready to proceed: 1. Execute the following to create a new project (iteration), with suggested logic:

4. Create a new project with the Rule Suggestions:

4. Create a new project with the Rule Suggestions

# 4. Create a new project with the Rule Suggestions
cd ..  # important - back to manager root dir
genai-logic genai --project-name='genai_demo_with_logic' --using=genai_demo_no_logic/docs/logic_suggestions

Observe: 1. The created project has the rule suggestions in logic/declare_logic.py 2. A revised Data Model in database/models.py that includes attributes introduced by the logic suggestions 3. Revised test database, initialized to reflect the derivations in the suggested logic

Internal Note: this sequence available in the run configs (s1/s4).

Fixup - update data model with new attributes from rules

Fixes project issues by updating the Data Model and Test Data: when adding rules, such as using suggestions, you may introduce new attributes. If these are missing, you will see exceptions when you start your project.

The genai-utils --fixup fixes such project issues by updating the Data Model and Test Data:

1. Collects the latest model, rules, and test data from the project.
2. Calls ChatGPT (or similar) to resolve missing columns or data in the project.
3. Saves the fixup request/response under a 'fixup' folder.
4. You then use this to create a new project

Setup

After starting the Manager:

0. Create Project Requiring Fixup:

0. Create Project Requiring Fixup

# 0. Create a project requiring fixup
genai-logic genai --repaired-response=system/genai/examples/genai_demo/genai_demo_fixup_required.json --project-name=genai_demo_fixup_required

If you run this project, you will observe that it fails with:

Logic Bank Activation Error -- see https://apilogicserver.github.io/Docs/WebGenAI-CLI/#recovery-options
Invalid Rules:  [AttributeError("type object 'Customer' has no attribute 'balance'")]
Missing Attrs (try genai-logic genai-utils --fixup): ['Customer.balance: constraint']



Fixup

To Fix it: 1. Run FixUp to add missing attributes to the fixup response data model:

1. Run FixUp to add missing attributes to the fixup response data model

# 1. Run FixUp to add missing attributes to the data model
cd genai_demo_fixup_required
genai-logic genai-utils --fixup

Finally, use the created fixup files to rebuild the project: 2. Rebuild the project from the fixup response data model:

2. Rebuild the project from the fixup response data model

# 2. Rebuild the project from the fixup response data model
cd ../
genai-logic genai --repaired-response=genai_demo_fixup_required/docs/fixup/response_fixup.json --project-name=fixed_project

  The created project may still report some attributes as missing.
(ChatGPT seems to often miss attributes mentioned in sum/count where clauses.) To fix:

1. Note the missing attributes(s) from the log
2. Add them to docs/003_suggest.prompt
3. Rebuild the project: genai-logic genai --project-name='genai_demo_with_logic' --using=genai_demo_no_logic/docs

Internal Note: this sequence available in the run configs (f1/f2).

Create from WebGenAI, and import (merge) subsequent changes

You can use WebGenAI to create a project, and export it.

You (or colleagues) can make changes to both the WebGenAI project (on the web), and your downloaded project. You can import the WebGenAI project, and the system will merge changes to the data model and rules automatically.

This is possible since the logic is declarative, so ordering is automatic. This eliminates the troublesome merge issues so prevalent in procedural code. For more on import, click here.

The Manager pre-installs a sample project you can use to explore import:

cd system/genai/examples/genai_demo/wg_dev_merge/dev_demo_no_logic_fixed
genai-logic genai-utils --import-genai --using=../wg_demo_no_logic_fixed

Observe: 1. The data model contains Customer.balance and Product.carbon_neutral 2. The test data has been updated to include these attributes, with proper values

Rebuild the test data

Fixes project issues by rebuilding the database to conform to the derivation rules:

1. Create genai_demo:

   genai-logic genai --using=system/genai/examples/genai_demo/genai_demo.prompt --project-name=genai_demo


2. Rebuild:

   cd genai_demo
   genai-logic genai-utils --rebuild-test-data


You can also execute directly, and iterate

You can add new columns/tables, while keeping the prior model intact:

Iterate:

Iterate

# create project without creating a file...
genai-logic genai-create --project-name='customer_orders' --using='customer orders'

genai-logic genai-iterate --using='add Order Details and Products'
# open Docs/db.dbml

AI sometimes fails - here's how to recover

AI results are not consistent, so the model file may need corrections. You can find it at system/genai/temp/model.py. You can correct the model file, and then run:

genai-logic create --project-name=genai_demo --from-model=system/genai/temp/create_db_models.py --db-url=sqlite

Or, correct the chatgpt response, and

genai-logic genai --repaired-response=system/genai/examples/genai_demo/genai_demo.response_example --project-name=genai_demo

We have seen failures such as:

• duplicate definition of DECIMAL
• unclosed parentheses
• data type errors in test data creation
• wrong engine import: from logic_bank import Engine, constraint
• bad test data creation: with Engine() as engine...
• Bad load code (no session)

Postgresql Example

You can test this as follows:

1. Use our docker image:
2. And try:

genai-logic genai --using=system/genai/examples/postgres/genai_demo_pg.prompt --db-url=postgresql://postgres:p@localhost/genai_demo

Provisos:

• You have to create the database first; we are considering automating that: https://stackoverflow.com/questions/76294523/why-cant-create-database-if-not-exists-using-sqlalchemy

2. New Database - using Copilot (Signup optional)

You can use Copilot chat (if extension installed; if not, skip to step 3):

1. Create a model, eg:

Show Me How to Use Copilot

>Paste this into the Copilot prompt:

Use SQLAlchemy to create a sqlite database named sample_ai.sqlite, with customers, orders, items and product

Hints: use autonum keys, allow nulls, Decimal types, foreign keys, no check constraints.

Include a notes field for orders.

Create a few rows of only customer and product data.

Enforce the Check Credit requirement (do not generate check constraints):

1. Customer.Balance <= CreditLimit
2. Customer.Balance = Sum(Order.AmountTotal where date shipped is null)
3. Order.AmountTotal = Sum(Items.Amount)
4. Items.Amount = Quantity * UnitPrice
5. Store the Items.UnitPrice as a copy from Product.UnitPrice

2. Paste the copilot response into a new sample_ai.py file

3. Create your project:

genai-logic create --project-name=sample_ai --from-model=sample_ai.py --db-url=sqlite

4. This will create your database, create an API Logic Project from it, and launch your IDE.

5. Create business logic

   • You can create logic with either your IDE (and code completion), or Natural Language

   • To use Natural Language:

     1. Use the CoPilot chat,
     2. Paste the logic above

     3. Copy it to logic/declare_logic.py after discover_logic()

        • Alert: Table and Column Names may require correction to conform to the model
        • Alert: you may to apply defaulting, and initialize derived attributes in your database

3. New Database - using ChatGPT in the Browser (Signup not required)

A final option for GenAI is to use your Browser with ChatGPT.

Please see this doc

Procedures

Quick Basic Demo - Cheat Sheet

This demo creates and customizes a project, starting from a database:

Quick Basic Demo:

Quick Basic Demo

# Microservice Automation
# Admin App, API, Project
genai-logic create --project-name=basic_demo --db-url=basic_demo

# Logic and Security
# see logic (logic/declare_logic.py, logic/cocktail-napkin.jpg);  add an Order and Item
# see security (security/declare_security.py); compare customers, s1 vs. admin
genai-logic add-cust
genai-logic add-auth --db_url=auth

# Python Extensibility, Kafka Integration, Rebuild Iteration
# see logic/declare_logic.py (breakpoint for Kafka)
# Swagger: ServicesEndPoint.OrderB2B
genai-logic add-cust
genai-logic rebuild-from-database --db_url=sqlite:///database/db.sqlite

Quick GenAI Demo - Cheat Sheet

This demo creates and customizes a project, starting from a prompt:

Quick GenAI Demo:

Quick GenAI Demo

# Microservice Automation from GenAI Prompt
# Admin App, API, Project
genai-logic genai --using=system/genai/examples/genai_demo/genai_demo.prompt

# Or, Microservice Automation from Saved Response
# Admin App, API, Project
genai-logic genai --repaired-response=system/genai/temp/chatgpt_retry.response

# Logic and Security
#   - see logic (logic/declare_logic.py, logic/cocktail-napkin.jpg);  add an Order and Item
#   - see security (security/declare_security.py); compare customers, s1 vs. admin
# Python Extensibility, Kafka Integration, Rebuild Iteration
#   - see logic/declare_logic.py (breakpoint for Kafka)
#   - Swagger: ServicesEndPoint.OrderB2B
genai-logic add-cust

Detail Procedures

Specific procedures for running the demo are here, so they do not interrupt the conceptual discussion above.

You can use either VSCode or Pycharm.

1. Establish your Virtual Environment

Python employs a virtual environment for project-specific dependencies.

If the project was created in this Manager (or opened from it), the venv is already configured — just press F5.

If the project was cloned from git, choose one of:

• Quickest (no VS Code setup): from the Manager terminal (or, use Code Assistant):

  genai-logic run --project-name=<project-name>


• Mac/Linux with F5: create a symlink to the Manager venv:

  cd <project>
  sh venv_setup/venv.sh symlink
  # reload VS Code window, then F5


• Any platform: create a local venv:

  sh venv_setup/venv.sh go        # mac/linux
  .\venv_setup\venv.ps1 go        # windows


For PyCharm, you will get a dialog requesting to create the venv; say yes.

See Project-Env for more information.



2. Start and Stop the Server

Both IDEs provide Run Configurations to start programs. These are pre-built by ApiLogicServer create.

For VSCode, start the Server with F5, Stop with Shift-F5 or the red stop button.

For PyCharm, start the server with CTL-D, Stop with red stop button.



3. Entering a new Order

To enter a new Order:

1. Click Customer 1

2. Click + ADD NEW ORDER

3. Set Notes to "hurry", and press SAVE AND SHOW

4. Click + ADD NEW ITEM

5. Enter Quantity 1, lookup "Product 1", and click SAVE AND ADD ANOTHER

6. Enter Quantity 2000, lookup "Product 2", and click SAVE

7. Observe the constraint error, triggered by rollups from the Item to the Order and Customer

8. Correct the quantity to 2, and click Save

4. Update the Order

To explore our new logic for green products:

1. Access the previous order, and ADD NEW ITEM

2. Enter quantity 11, lookup product Green, and click Save.



Setup Codespaces

Codespaces enables you to run in the cloud: VSCode via your Browser, courtesy GitHub.

Using codespaces on your GenAI project

1. Open your project on GitHub

2. Open it in Codespaces (takes a minute or 2):

You'll see your project running in VSCode, in the browser. Behind the scenes, Codespaces requisitioned a cloud machine and loaded your project with a complete development environment — Python, dependencies, git — and attached your browser to it.

3. Start the Server and open the App in the Browser

• Use the pre-defined Launch Configuration



Get an OpenAI ApiKey

GenAI-Logic uses OpenAI, which requires an OpenAI Key:

1. Obtain one from here or here

2. Authorize payments here



Pre-created Samples

Explore Pre-created Samples

The samples folder has pre-created important projects you will want to review at some point (Important: look for readme files):

• nw_sample_nocust - northwind (customers, orders...) database

  • This reflects the results you can expect with your own databases

• nw_sample - same database, but with with customizations added. It's a great resource for exploring how to customize your projects.

  • Hint: use your IDE to search for #als

• tutorial - short (~30 min) walk-through of using API Logic Server using the northwind (customers, orders...) database

You can always re-create the samples

Re-create them as follows:

1. Open a terminal window (Terminal > New Terminal), and paste the following CLI command:

ApiLogicServer create --project-name=samples/tutorial --db-url=
ApiLogicServer create --project-name=samples/nw_sample --db-url=nw+
ApiLogicServer create --project-name=samples/nw_sample_nocust --db-url=nw



Hiding Front Matter

Hiding Front Matter

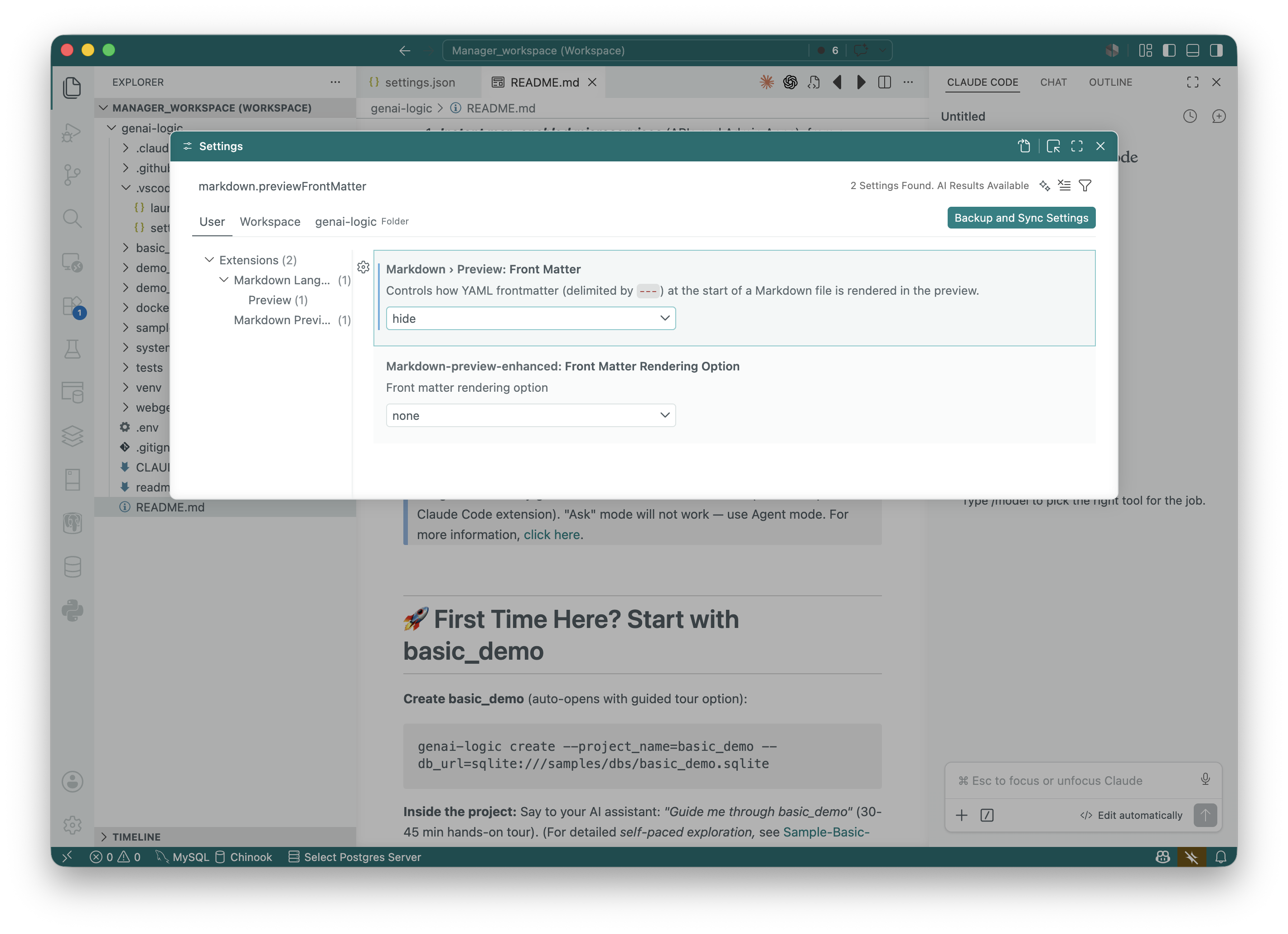

To hide the YAML or JSON front matter (the metadata block at the top of your markdown files) in the built-in VS Code markdown preview, you can adjust your editor settings:

1. Open the Settings panel using Ctrl + , (Windows/Linux) or Cmd + , (macOS).
2. Search for the following term: markdown.previewFrontMatter.
3. Change the dropdown value from show to hide.

The preview will now automatically strip the front matter from the rendered view.
