Generated React App

💡 TL;DR - instant multi-page, multi-table apps

Ask your AI assistant (Copilot, Claude — already in your IDE session) to generate a standard react app directly from your project's ui/admin/admin.yaml, fully customizable using GenAI Vibe tools and/or your IDE. No OpenAI key, no separate API call — your assistant already has the schema and a running server in context. You get a headstart:

  • No data mockups - use the created server
  • No starting from scratch - customize a running multi-page app
  • Minimal background on html, javascript etc,
    you can begin using Vibe/Natural Language tools to create custom User Interfaces

This complements the automated Admin App, which focuses on speed and simplicity.

It provides:

Feature Provides Example
Multi-Page List/Show pages for each table
Built-in search, sort, export		 Customer Page, Order Page, etc
Multi-Table Tab Sheet for related child data
Page Transitions for related data		 Customer page has OrderList
Click --> Order/OrderDetails
Automatic Joins for Parent Data Product Name - not just the Id
Lookups for foreign keys Find Product for OrderDetail
Cascade Add to default foreign keys Add Line Items for this order
Customize Use GenAI Vibe tools and/or your IDE Add new pages, controls, etc

See status, at end. Prefer a ChatGPT-API-driven CLI generator instead? See the Appendix: CLI Generator below — a fallback for environments with no AI assistant session available.


Generation

Get the Data Model Right Fast, Then Build the UI

Don't start React generation from a blank prompt — start from the Admin App you already have running. It's the fast iteration loop for getting the data-model surface correct before any UI code exists:

  1. Iterate on ui/admin/admin.yaml — columns, types, ordering, labels, relationships, show_when visibility. Refresh the Admin App, check it, adjust, repeat. This loop is seconds per cycle, no build step, no React involved.
  2. Once admin.yaml is right, generate the React Admin app from it. The generator isn't guessing table structure — it's translating a schema you've already verified. That's why this step is reliable: the hard part (getting columns/types/relationships correct) happened first, in the cheap loop.
  3. Only then layer on presentation the Admin App's generic grid/form UI doesn't do — card layouts, maps, custom dashboards, branded styling. This is where a custom React app earns its keep over the built-in Admin App.

Skipping straight to React generation means debugging schema mistakes (wrong column, wrong type, missing relationship) inside generated JSX — slower and harder to isolate than catching them in admin.yaml first.

Pre-reqs:

  1. Node
  2. Your project running, with ui/admin/admin.yaml reflecting the schema you want (step 1 above)

Once your project is running, ask your AI assistant to generate the app (e.g., in your IDE's chat panel):

Ask your AI assistant to generate the app
Create a new react app named my-app-name from ui/admin/admin.yaml.

Your assistant copies a deterministic skeleton (package.json, data provider, base components — no AI needed for this part), then generates one resource file per table in admin.yaml (List/Show/Create/Edit for each), then wires App.js. See ui/app_readme.md and docs/training/admin_app_2_functionality.prompt.md in your project for the exact pattern and reporting format.

Then:

Run the generated app
cd ui/my-app-name
npm install
npm start

This is fast — a 6-table schema generates in a few minutes, not "6 min for northwind" via a remote API — because there's no per-resource network round-trip to a hosted model.


Generated App

Your AI assistant uses these to drive creation:

  1. You projects' ui/admin/admin.yaml (click here), which provides information about the schema and basic layout
  2. The Managers' Admin-App-Learning (click here) - describes the functionality and architecture of the generated app

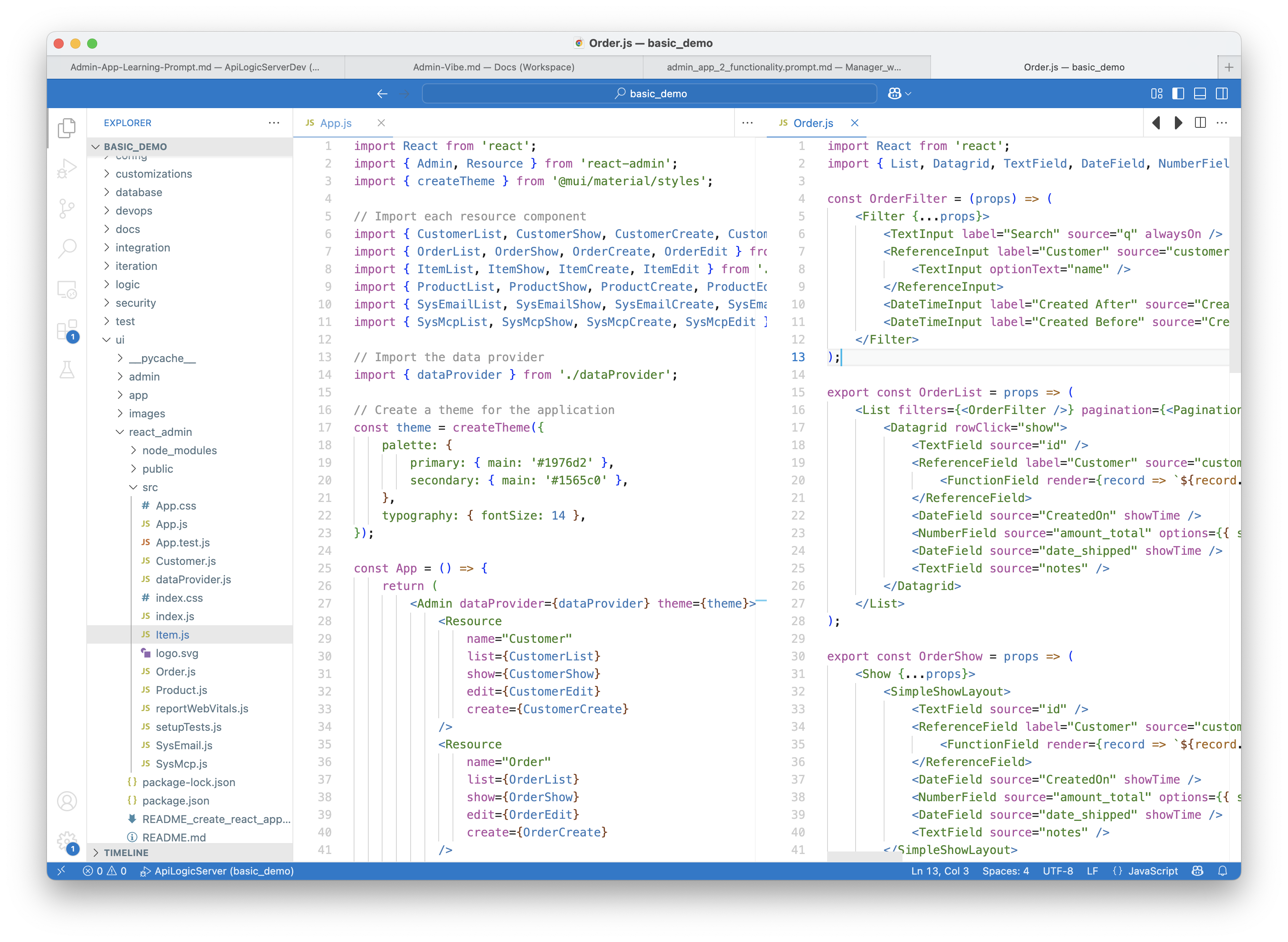

It creates applications like this:

genai-app-run


Running App

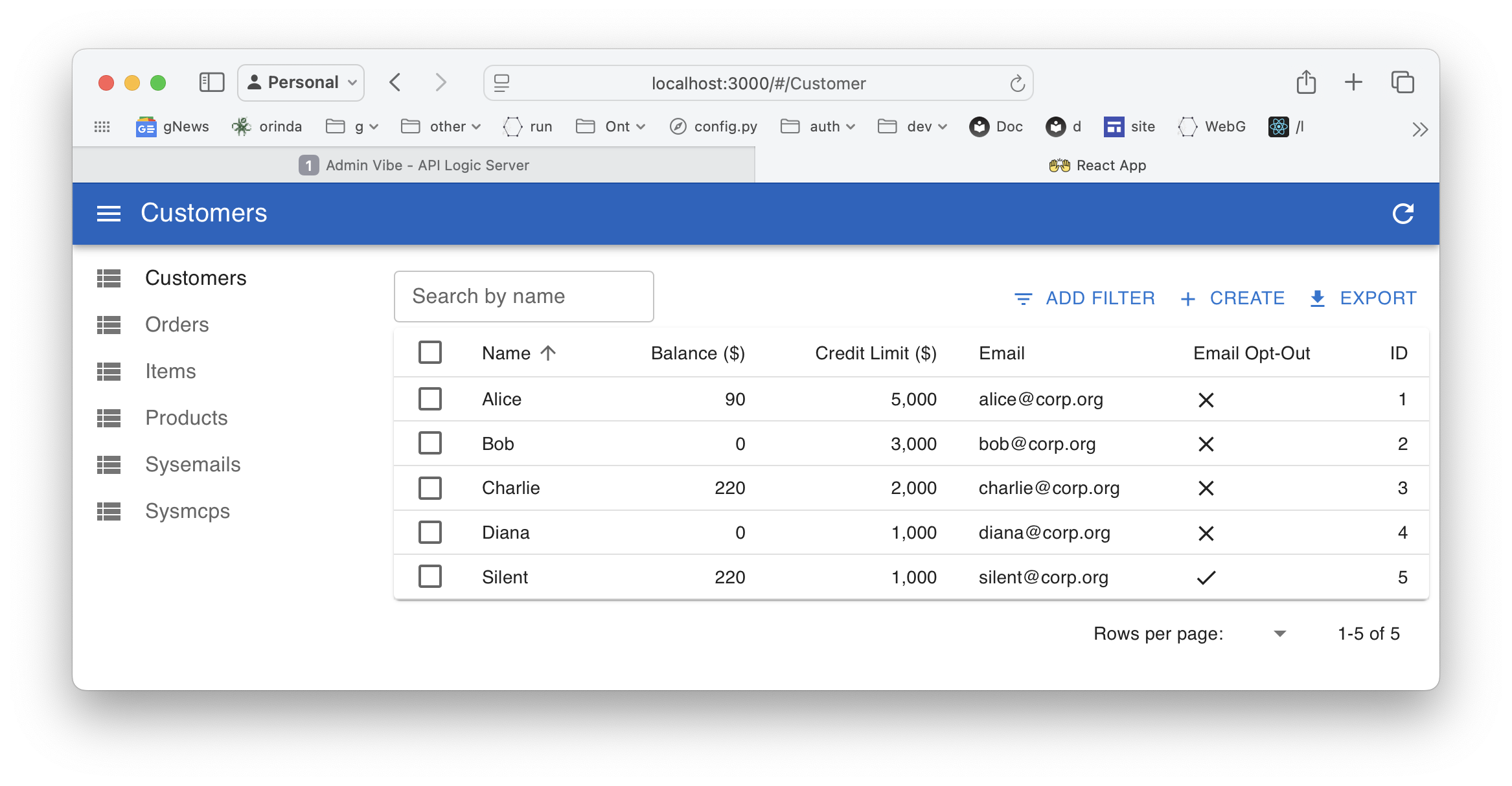

The running app looks like this:

genai-app-run


Vibe Customization

Not a bad app, but the objective here is that we can customize - simply, with Natural Language. Let's try it.

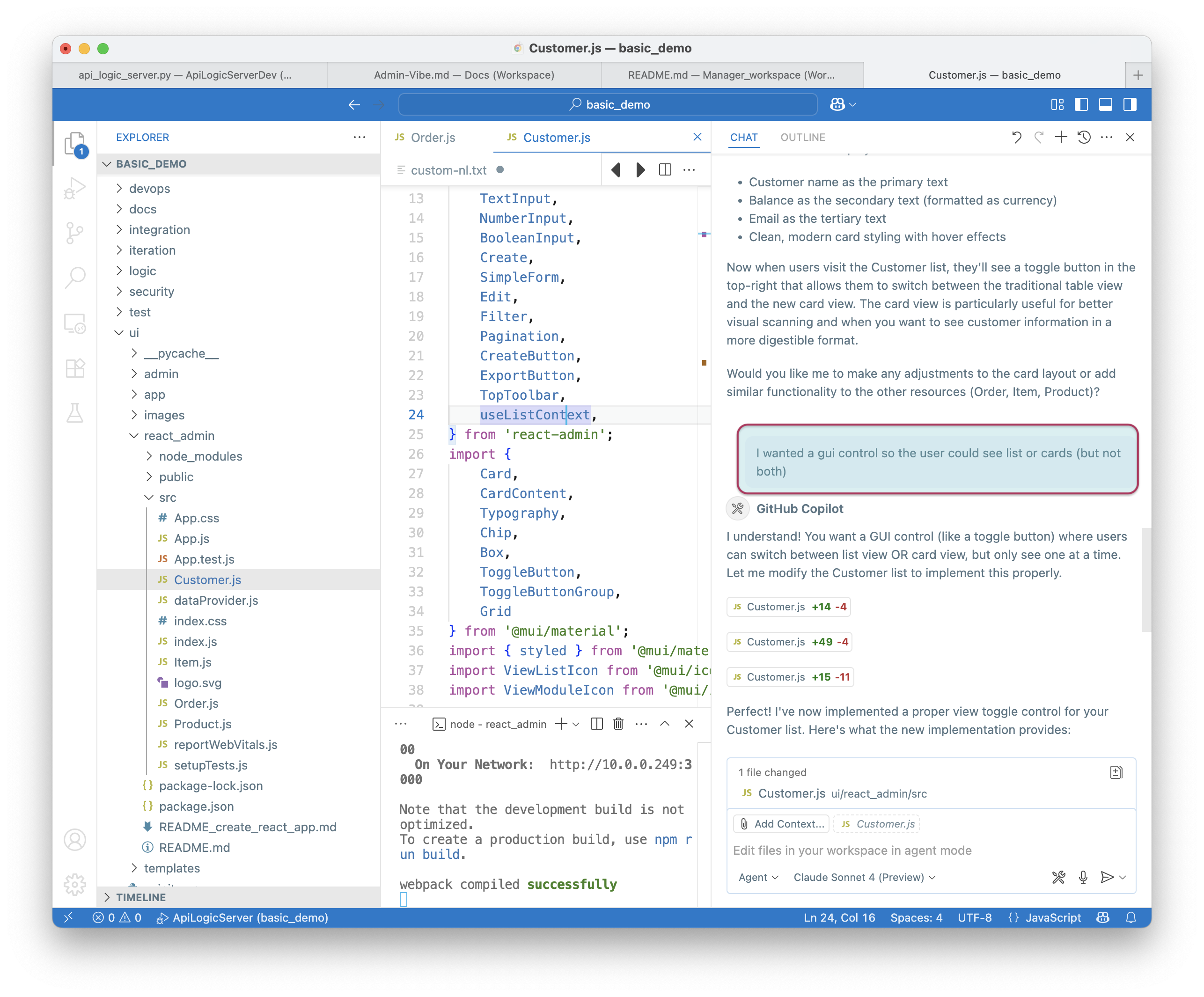

Here, we are using the Claude preview of VsCode, and make the request:

Vibe: Customize with Natural Language

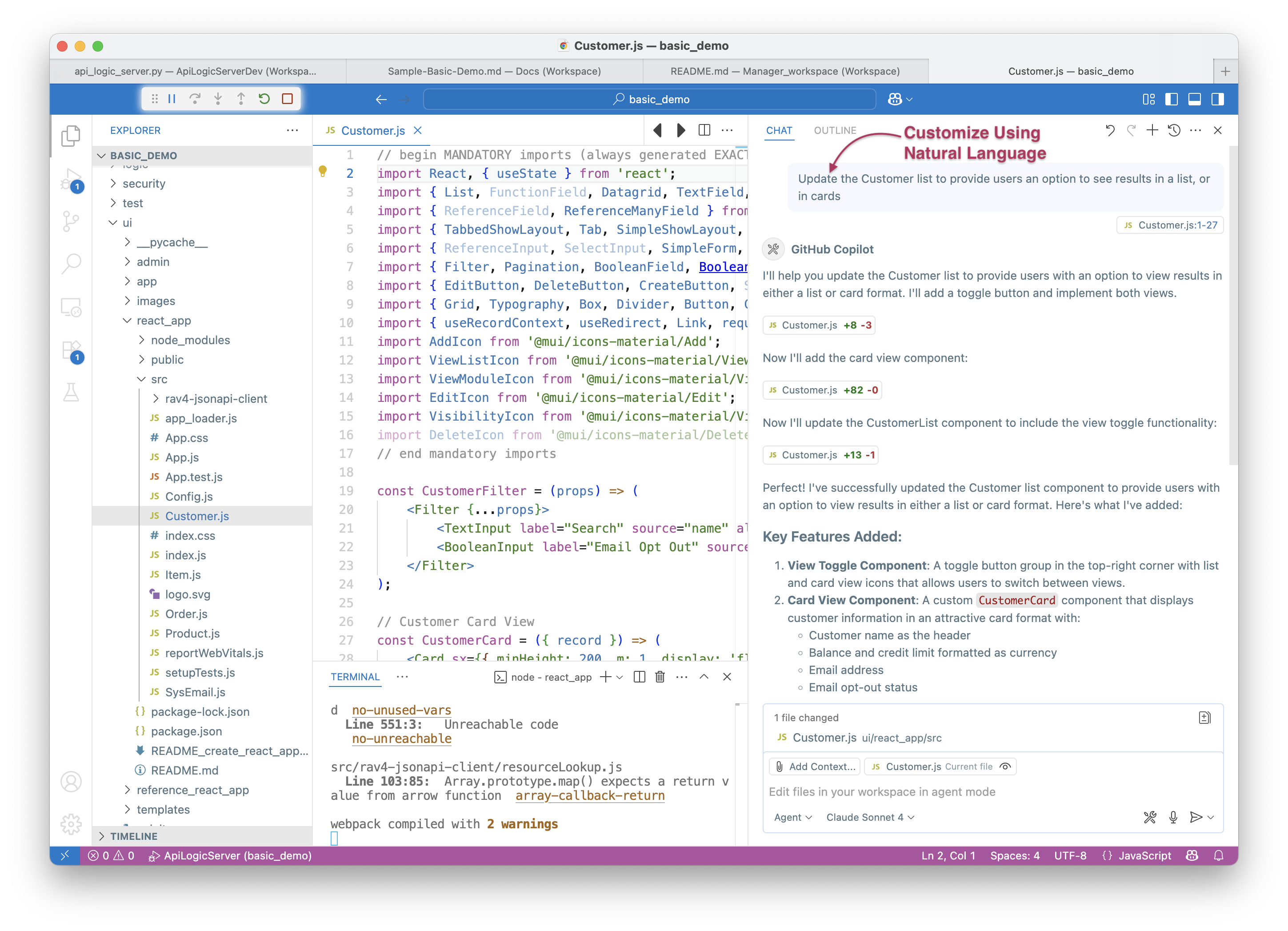

Update the Customer list to provide users an option to see results in a list, or in cards

vibe-cards

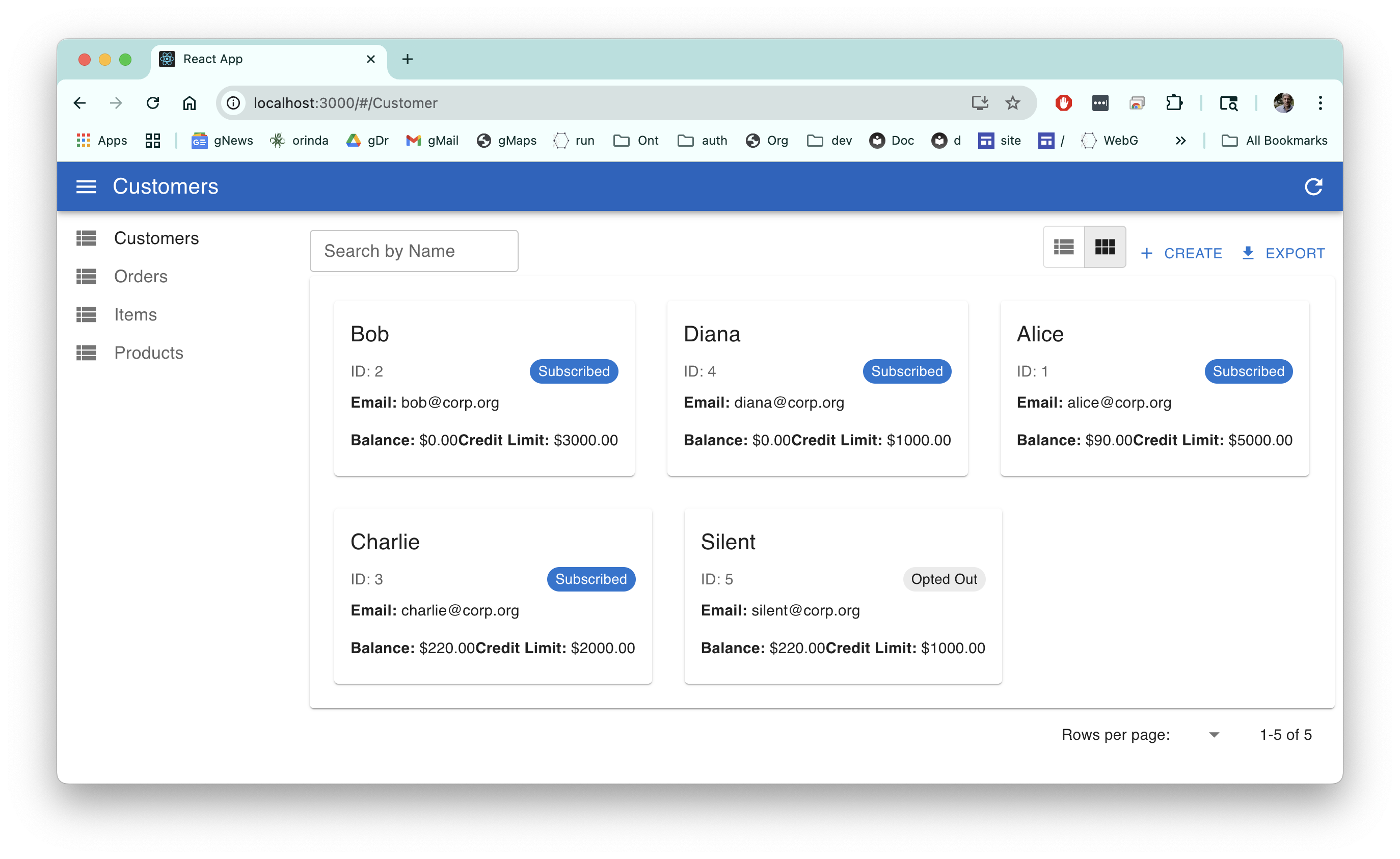

And we get:

get-card

Northwind Reference Example

The Northwind app (samples/nw_sample/ui/reference_react_app in the manager) has been customized to illustrate what you can do with vibe, including graphs and charts, maps, trees, cards, etc.

To review, click here.

nw-cards


Or, Update the training

This customization example was a one-off.

Since the app learning is a part of your project, you can alter it to create apps with lists / cards, automatically.


Appendix: Status

Tested end-to-end on basic_demo and the Northwind sample (nw_sample). Creates runnable apps, pre-wired with a dataProvider for SAFRS JSON:API.

Note: AI can make errors — these often require minor corrections to imports, etc. We continue tuning the learning to reduce these.

Working:

  • Master / Detail Tab Sheets, Grid (multi-column) Show pages, Automatic Joins, Filter, Transitions, Update with Validation, Lookups, Cascade Add

ToDo:

  • Security (disable with genai-logic add-auth --provider-type=None)


Appendix: Explore

The quickest way to get going...

  1. Install GenAI-Logic and the Manager (click here), and
  2. In the Manager, open a terminal window and create Basic Demo (Info here) as described in the Readme:
ApiLogicServer create --project_name=basic_demo --db_url=basic_demo
  1. Open the created app, and run it (F5) to explore the Automatic Admin App and the API
  2. Execute the Generation procedure as described above
  3. Proceed with the readme to explore business logic, MCP, customization, and integration


Appendix: CLI Generator (fallback)

Before AI assistants could generate apps directly inside your IDE session, this project shipped a CLI command that drove the same generation via the OpenAI API — one call per resource file, to stay under token limits for a single-shot completion. It still works, and is the right choice if your environment has no AI assistant session available (e.g. a walled-garden Codespaces setup with only a fixed tool, or a CI/scripted pipeline).

Pre-reqs:

  1. An OpenAI API Key (click here)
  2. Node
Create and Run React app (CLI, OpenAI-driven)
genai-logic genai-add-app --vibe --app-name=my-app-name
cd ui/my-app-name
npm install
npm start

This can take a while (e.g., 6 min for northwind sample) — each resource file is a separate network round-trip to a hosted model. Produces the same output shape as direct AI-assistant generation above.
