Project Governance Report ⚗️

Technology Preview

Project Governance is a technology preview. The features work today — say "vital signs", "create logic diagram", or run your Behave tests in any project. Scoring weights, thresholds, and diagram layout are still being refined based on real-world use. Feedback welcome.

Project Governance

GenAI-Logic projects are governed by declarative rules. But governance is more than code quality — it is the complete story from business requirement through to verified correctness, all traceable back to a single source.

The synced story:

Business Requirement  →  Declarative Rules  →  Logic Flow  →  Tests
      (docstring)           (Rule.* DSL)         (diagram)     (Behave)

Every layer is generated from — and traces back to — the same logic file. No separate documentation. No drift. The requirement IS the spec, the rules ARE the implementation, and the reports ARE the proof.

Three tools deliver this story:

Tool Question answered How to invoke
Logic Flow What does this system do? create logic diagram
Vital Signs Is it implemented correctly? vital signs
Behave Tests Did it work as specified? Run Behave suite



Rules Are Still Code

Declarative rules are Python source files — they participate in all standard development practices without special tooling:

Source control. A Rule.sum declaration diffs as one readable line. A PR that changes a credit threshold is a one-line change with obvious intent. Two hundred lines of procedural aggregate logic requires careful review to spot the same change.

Code review. A reviewer unfamiliar with the codebase can read Rule.sum(derive=Customer.balance, as_sum_of=Order.amount_total, where=lambda row: row.date_shipped is None) and immediately understand the business intent — no tracing through call stacks.

Debugger. Because rules are data-bound rather than path-dependent, a single breakpoint on a constraint or formula shows the exact row state that triggered it. No stepping through multiple procedural handlers for the same business condition.

Container deployment. Rules live in the project — no separate rule engine server, no proprietary runtime. Standard Docker/Kubernetes deployment, same as any Flask microservice. See devops/docker/ in any created project.

This means adopting declarative rules does not require adopting new infrastructure. It is a better way to write the same Python that teams are already writing.



Logic Flow — Requirements, Diagram, and Rules in One Document

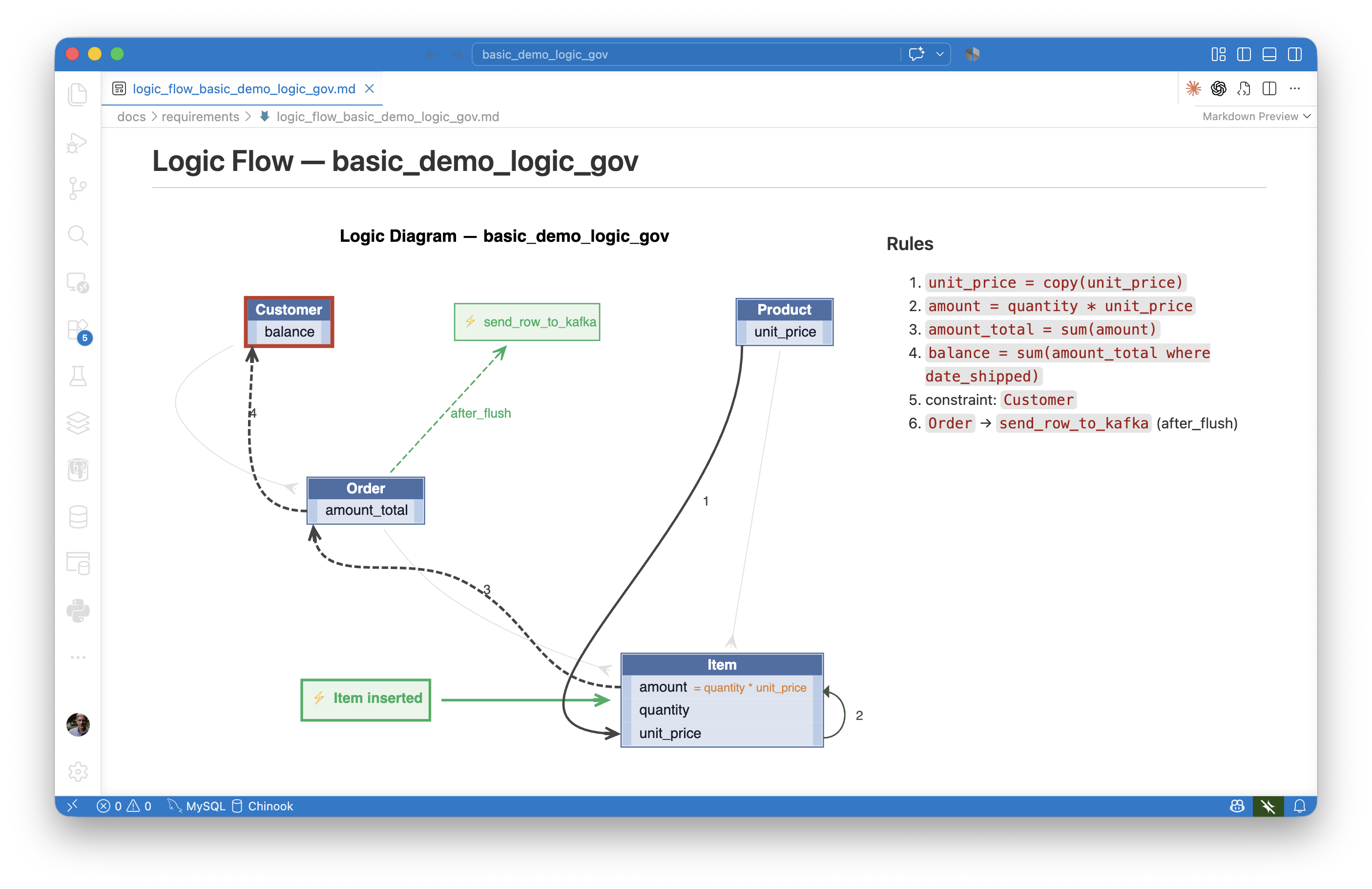

Say create logic diagram (or create logic diagram from <requirement>) in any project. The AI generates a Markdown document that combines:

  1. The requirement — the natural-language spec from the logic file's module docstring
  2. The diagram — an SVG showing which tables are involved and how data flows
  3. The rule summary — a numbered list of what fires, in causal order
Logic Flow — demo_customs_clvs_2 [clvs_eligibility]

  Requirements:

    Scenario: Shipment at or below the LVS threshold is eligible
      Given a shipment imported by an authorized CLVS courier
      And the shipment has an estimated value not exceeding CAD $3,300
      ...

  [SVG diagram rendered inline]

  Rules:

    1. prohibited_commodity_count = count(ShipmentCommodity where is_prohibited)
    2. controlled_commodity_count = count(ShipmentCommodity where controlled_regulated_goods_id)
    3. clvs_reason = _clvs_reason(row) — comma-delimited list of ineligibility reasons
    4. clvs_eligible = _clvs_eligible(row) — 1 if all CLVS criteria met, else 0

The diagram uses left-side arrows for aggregation flow (copy, sum, count) and right-side arcs for formula derivations — visually separating hierarchy flow from local computation.

Output location: docs/requirements/<requirement>/logic_flow_<requirement>.md

Requires: brew install graphviz once on macOS (sudo apt install graphviz on Linux).

The calling= Docstring Convention

For complex rules using calling=my_func, the function must have a one-line docstring. The first line appears in the logic flow summary:

def _clvs_eligible(row, old_row, logic_row):
    """Derive clvs_eligible: 1 if shipment meets all CLVS criteria, else 0."""
    ...

Without it, the summary shows only the function name. With it: clvs_eligible = _clvs_eligible(row) — "1 if shipment meets all CLVS criteria"

Vital Signs flags missing docstrings as a finding (see below).



Vital Signs — Code Quality and Rule Correctness

Say vital signs (or health check) in any project workspace. The AI:

  1. Reads all logic files in logic/logic_discovery/ and logic/declare_logic.py
  2. Reads database/models.py to count domain tables
  3. Computes two scores and checks for red flags
  4. Reports findings with exact file:line citations
  5. Offers to fix each finding in the same session

No configuration required. Zero overhead until invoked.

Coverage Score — Are your tables governed by rules?

Coverage Score = weighted_rules / domain_table_count

Rules are weighted by their value — how much procedural code they replace:

Rule type Weight Why
Rule.sum 3 Replaces multi-path aggregate on every change path
Rule.count 3 Same — existence checks, cardinality constraints
Rule.formula 2 Replaces derivation on every write path
Rule.copy 2 Replaces copy + cascade on parent change
Rule.constraint 1 Replaces one guard — trivial to write procedurally

Reference ranges:

Score Grade Meaning
≥ 4.0 ✅ Strong Well-governed; meaningful rules on most tables
2.0–3.9 🟡 Moderate Some tables likely ungoverned
1.0–1.9 🟠 Thin Mostly constraints; low rule density
< 1.0 🔴 Weak Project largely procedural

Integrity Score — Is the rule code correct?

Integrity Score = 100 - demerits

Demerits penalize patterns that look like rules but silently fail — broken dependency tracking, procedural aggregates replacing rules, and hygiene issues that cause the AI to generate wrong rules on the next iteration.

Key demerits:

Pattern Points Why
session.query() inside a formula -3 Goes stale on child changes — use Rule.count
as_expression=lambda row: my_func(row) -2 LB sees no row.attr refs — rule never re-fires
Event assigns row.attr = with no I/O -2 Should be Rule.formula or Rule.copy
Rules in declare_logic.py (not discovery) -2 Traceability lost — migrate to logic_discovery/
calling= function missing docstring -1 Logic flow diagram shows no intent

Hall passes exempt legitimately procedural code: Kafka publish functions, EAI consumer bridges, AI handler functions (OpenAI/Anthropic calls), and Allocate recipients functions.

Reference ranges:

Score Grade
≥ 95 ✅ Good
85–94 🟡 Fair — some findings to address
75–84 🟠 Poor — likely bugs in production logic
< 75 🔴 Critical — immediate remediation needed

Red Flag — The Governance Signal

Beyond the two scores, the health check raises a binary red flag:

≥ 10 tables with incoming foreign keys AND zero Rule.sum + zero Rule.count

This is the primary signal for a team that has not adopted rules. Not a low score — none. A project with 10+ tables and no aggregation rules has almost certainly written those derivations procedurally, or not at all.

🚨 RED FLAG: 12 tables with child relationships, zero aggregation rules.
   Suggestion: schedule rules training or consulting engagement.

If the flag applies but is intentional (schema locked, read-only reporting project, legacy integration), acknowledge it formally in logic/logic_discovery/use_case.py:

"""
@health-check: red-flag-suppress
Reason: schema locked — aggregations implemented in stored procedures
Reviewer: val
Date: 2026-05-10
"""

Reason: is required. The acknowledgement appears in the report with the reviewer's name and date — a permanent audit trail.



Behave Tests — Correctness Proof

Behave tests provide the third layer: executable proof that the system does what the requirements specify. Unlike unit tests that verify code, Behave Logic Reports trace the full chain:

Requirement → Test scenario → Rules that fired → Execution trace

Each test scenario produces a log showing exactly which rules fired, what values changed, and what constraints were checked — making the connection between business requirement and system behaviour explicit and reviewable.

See Behave Logic Report for the complete guide.



Background: The Versata Automation Analyzer

The Vital Signs capability is inspired by a tool built at Versata in the 1990s — the Automation Analyzer. Versata generated Java superclasses for business rules; the analyzer measured the ratio of generated (declarative) code to hand-written (procedural) code across teams and projects.

The findings were striking. Across Fortune 500 deployments with tens to hundreds of thousands of lines of code:

  • High-automation projects: 98% declarative
  • Low-automation projects: 94% declarative

The gap — just 4 percentage points — represented thousands of lines of procedural code that bypassed the rules engine, with corresponding maintenance costs and production bugs. Teams that resisted rules didn't avoid all rules — they avoided the hardest ones: multi-table aggregations (sums, counts) that require trusting the engine to handle all change paths automatically.

The analyzer made that resistance visible. Managers could spot a struggling team in seconds, without reading code.

GenAI-Logic's governance tools extend that vision: not just measuring adoption, but providing the full traceable story from requirement to verified correctness.



Sample Vital Signs Report

Project Governance Report

Coverage Score: 5.8  (29 weighted rules / 5 tables)   ✅ Strong
Integrity Score: 98  (1 demerit, 0 reviewed)
Red Flag: none  (3 aggregation rules, 5 FK tables)

────────────────────────────────────────
COVERAGE DETAIL
  Tables (5): CustomsEntry, SurtaxLineItem, HsCodeRate, Province, CountryOrigin
  Rules:  3× sum, 6× formula, 6× copy, 2× constraint

INTEGRITY FINDINGS
  🟡 -1  logic/logic_discovery/cbsa_surtax/validation.py:8
         docstring contains implementation note beyond requirement text
         → Fix: replace with verbatim requirement text only

────────────────────────────────────────
1 finding needs attention. Want me to fix it?



The nw_sample Contrast — See It In Action

The Manager workspace includes two Northwind projects that tell the before/after story concretely. Open these files now to see what a real health check report looks like:

Before — samples/nw_sample_nocust/nw_sample_nocust_governance_report.md
Freshly created from the Northwind database. No rules added. This is what every project looks like on day one: - Coverage: 0.0 — Red Flag: 🚨 raised (16 FK tables, zero aggregations) - Integrity: 100 (vacuously — nothing to demerit yet)

After — samples/nw_sample/nw_sample_governance_report.md
Same schema, rules added. This is what the project looks like after a developer has worked through the logic: - Coverage: 3.8 — Red Flag: none - Integrity: 96 — 3 minor organizational findings, no bugs

The jump from 0.0 → 3.8 coverage and 🚨 → no flag is the value of rule adoption made visible in two numbers.

Try it yourself

Open samples/nw_sample/ as a workspace and say vital signs. You will get a live report equivalent to nw_sample_governance_report.md — plus the offer to fix each finding in the same session.



Portfolio View — Governance at Scale

For organizations running multiple GenAI-Logic projects, health check scores provide a natural basis for tracking rule adoption across teams.

Ask the AI to score all projects at once:

"vital signs across all projects — rank by coverage score"

This produces a ranked summary table — a leaderboard that makes rule adoption visible and comparable without reading a single line of code.

Why this works as an adoption tool:

  • The score is actionable in an afternoon — one Rule.sum declaration visibly moves the number
  • The red flag creates urgency without a mandate — no team wants to be the only 🚨 on the board
  • Peer learning replaces enforcement — "how did Team A get to 5.8?" is a better conversation than "you must use more rules"
  • The @health-check acknowledgement requires a name and reason — suppressing a flag to game the leaderboard is visible to management

Trend tracking matters more than absolute scores. A project at 2.0 trending up is healthier than one at 4.0 trending down. Run health checks after each significant release and track direction.

For full governance policy, score thresholds, and manager roll-up guidance, see docs/training/governance.md in any created project.



Technical Reference

File Purpose
docs/training/health_check.md AI instructions — scoring algorithm, detection patterns, fix protocol
docs/training/governance.md Human policy — thresholds, red flags, portfolio view, Versata baseline
docs/training/logic_diagrams/logic_diagram.md Logic flow diagram guide — how to read, how to generate
docs/training/logic_diagrams/generate_logic_diagram.py Per-project convenience script
system/ApiLogicServer-Internal-Dev/logic_diagram_gv.py Generator (Manager tool)
samples/portfolio_governance_report.md Cross-project health check for all Manager samples
samples/nw_sample/nw_sample_governance_report.md Single-project example (with rules)
samples/nw_sample_nocust/nw_sample_nocust_governance_report.md Single-project example (baseline)
