.. Sub-Types

TL;DR - Type-specific attributes, relationships, rules, and display

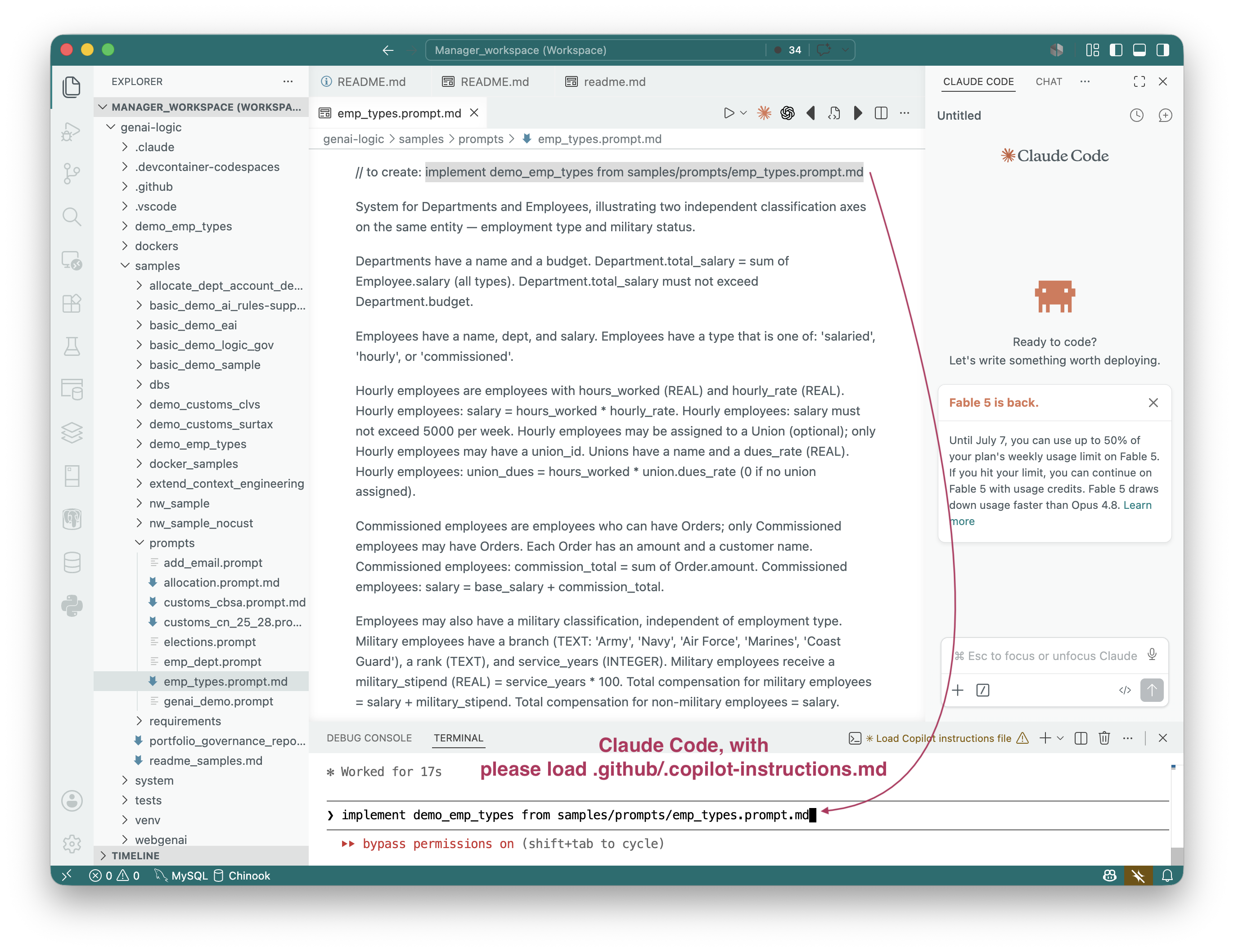

The sample below illustrates how your project creation prompts can identify types (eg, Hourly vs Salaried), with

• Type-specific attributes: only Hourly employees have Dues
• Type-specfic relationships: only Hourly employees have Union
• Logic: salary is computed per type
• Display: the Admin App shows only proper attributes, per types

Unlike classic OO inheritance, a table can have multiple types (Hourly/Salaries, and Military).

Status: Technology Preview

Entity Subtypes — Single Table Inheritance Pattern

This is a delivered sample (samples/demo_emp_types), which can also rebuild as follows:





What This Illustrates

Two independent classification axes on the same entity — in this case Employee:

1. Employment type — strict hierarchy: salaried | hourly | commissioned
2. Military status — orthogonal flag: any employee can also be military, regardless of employment type



Three Approaches to Type Hierarchies

Approach	Tables	GL preference
STI (Single Table Inheritance)	One table, type discriminator column, nullable subtype cols	✅ Preferred
Joined CTI (Class Table Inheritance)	Base table + one joined table per subtype	❌ Avoid
Concrete CTI	One separate table per subtype, no shared base	❌ Avoid



Why STI Wins in This Stack

API: GET /api/Employee/ returns all employees in one call — no joins, no custom endpoints.
Insert: POST /api/Employee/ with a type value inserts any subtype in one call.
Admin UI: show_when in admin.yaml hides/shows subtype fields based on the discriminator — no separate UI sections needed.
Rules: All LogicBank rules go on models.Employee; subtype branching lives inside calling= function bodies (if row.type == 'hourly': ...).
Aggregates: A parent Department.total_salary sums Employee.salary across all subtypes in one Rule.sum — no union required.

Joined CTI requires custom API endpoints for insert and list, and splits the Admin UI — far more effort for no practical gain in this stack.



The Orthogonal Axis Argument

The military classification is the key argument for STI over joined CTI:

• An employee can be both commissioned and military simultaneously
• Joined CTI has no clean home for a row that belongs to two subtype tables at once
• STI handles both axes with two discriminator columns (type + is_military) on one table, zero joins

This generalises: whenever classifications are orthogonal (independent of each other), STI is the only approach that avoids combinatorial table explosion.



Schema Pattern

CREATE TABLE employee (
    id              INTEGER PRIMARY KEY AUTOINCREMENT,
    type            TEXT NOT NULL,          -- 'salaried' | 'hourly' | 'commissioned'
    name            TEXT NOT NULL,
    dept_id         INTEGER REFERENCES department(id),
    salary          REAL,                   -- on BASE table so Dept aggregate works for all types
    -- hourly-only (nullable for other types):
    hours_worked    REAL,
    hourly_rate     REAL,
    union_id        INTEGER REFERENCES union_table(id),  -- nullable: not all hourly are union members
    union_dues      REAL,
    -- commissioned-only:
    base_salary     REAL,
    commission_total REAL,
    -- military orthogonal axis (any type):
    is_military     INTEGER DEFAULT 0,
    branch          TEXT,
    rank            TEXT,
    service_years   INTEGER,
    military_stipend REAL,
    total_compensation REAL
);

Key rule: any column needed for cross-subtype aggregation (e.g. salary) must live on the base table.



SQLAlchemy Models — Data-Level STI Only

rebuild-from-database generates a single plain class. Leave it exactly as generated — do not add __mapper_args__ or subclass definitions.

class Employee(Base):
    __tablename__ = 'employee'
    # No __mapper_args__ — plain class, works correctly with SAFRS and LogicBank
    ...

Adding ORM polymorphic subclasses (HourlyEmployee, CommissionedEmployee, etc.) hits two confirmed platform bugs — see Internals Appendix below.

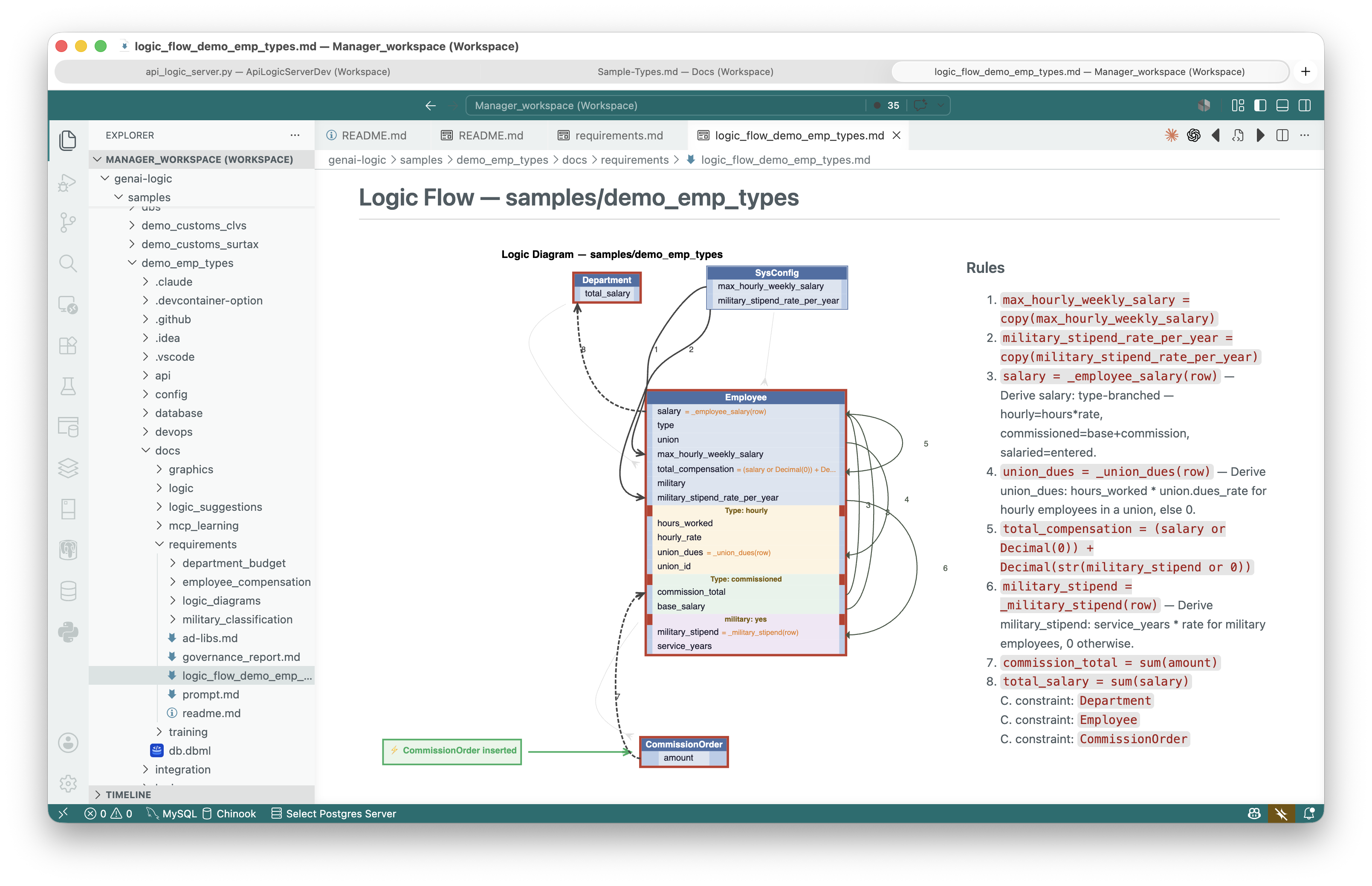

LogicBank Rules — All on Base Class, Type Guards in Functions

All rules are declared on models.Employee. Subtype branching goes inside the calling= function body.

# Cross-subtype aggregate — one Rule.sum covers all types:
Rule.sum(derive=models.Department.total_salary, as_sum_of=models.Employee.salary)

# Type-branched salary — one formula, branches on row.type:
def _employee_salary(row, old_row, logic_row):
    """Derive salary: hours*rate (hourly), base+commission (commissioned), entered (salaried)."""
    if row.type == 'hourly':
        return (row.hours_worked or 0) * (row.hourly_rate or 0)
    elif row.type == 'commissioned':
        return (row.base_salary or 0) + (row.commission_total or 0)
    return row.salary  # salaried: entered directly

Rule.formula(derive=models.Employee.salary, calling=_employee_salary)

# Inferred null-exclusion constraints (see Internals Appendix):
Rule.constraint(validate=models.Employee,
                as_condition=lambda row: row.type == 'hourly' or row.union_id is None,
                error_msg="union_id must be null for non-hourly employees")
Rule.constraint(validate=models.Employee,
                as_condition=lambda row: row.type == 'commissioned' or row.commission_total == 0,
                error_msg="Orders only permitted for commissioned employees")



Admin UI — show_when

- Employee:
    fields:
      - name: hours_worked
        show_when: type == 'hourly'
      - name: hourly_rate
        show_when: type == 'hourly'
      - name: base_salary
        show_when: type == 'commissioned'
      - name: commission_total
        show_when: type == 'commissioned'
      - name: branch
        show_when: is_military == 1
      - name: rank
        show_when: is_military == 1
      - name: service_years
        show_when: is_military == 1
      - name: military_stipend
        show_when: is_military == 1

Generation policy:

Context	Policy
Method 4 (new project)	Auto-generate show_when for every subtype-specific column
Existing project	Only on explicit user request ("in the admin app, show attributes pertinent to type")

For an existing project the CE derives the type→column mapping at generation time by reading database/models.py (Enum values on the type column) and scanning logic/logic_discovery/ for row.type == guards. No stored state is needed.



---

Internals Appendix

Platform Constraint — No ORM Subclasses

Two confirmed bugs prevent SQLAlchemy polymorphic subclasses from working correctly in the SAFRS + LogicBank stack:

1. LogicBank silent miss. LogicBank dispatches rules by the row's exact mapped class. A Rule.formula declared on models.Employee never fires for a row inserted as HourlyEmployee — no error, wrong result.

2. SAFRS BuildError. SAFRS cannot build JSON:API URLs for polymorphic STI instances: BuildError: Could not build url for endpoint 'HourlyEmployeeId'. The API returns a 500 on any request that touches a polymorphic subtype row.

Correct implementation: Single class models.Employee, no __mapper_args__, no subclasses. All rules on models.Employee. Seed data uses Employee(type='hourly', ...) not HourlyEmployee(...).



Inferred Null-Exclusion Constraints

When a column is subtype-specific (nullable for all other types), the CE automatically infers a null-exclusion constraint — no prompt wording required:

# union_id: only hourly employees may have one
Rule.constraint(validate=models.Employee,
                as_condition=lambda row: row.type == 'hourly' or row.union_id is None,
                error_msg="union_id must be null for non-hourly employees")

# order_count / commission_total: only commissioned employees may accumulate orders
Rule.constraint(validate=models.Employee,
                as_condition=lambda row: row.type == 'commissioned' or row.commission_total == 0,
                error_msg="Orders only permitted for commissioned employees")

Trigger: any FK or aggregate column whose prompt description says "only [subtype] employees may have …".



Zero-Defaults for Type-Guarded Formulas

A type-guarded formula (one that uses row.type == branching) must return Decimal(0) (not None) for non-applicable branches. None propagates into aggregates and comparisons as NULL, producing wrong results downstream.

def _employee_salary(row, old_row, logic_row):
    """Derive salary: hours*rate (hourly), base+commission (commissioned), entered (salaried)."""
    if row.type == 'hourly':
        return (row.hours_worked or 0) * (row.hourly_rate or 0)
    elif row.type == 'commissioned':
        return (row.base_salary or 0) + (row.commission_total or 0)
    return row.salary  # salaried: entered directly — never return None

The or 0 guards ensure that None nullable columns contribute 0 rather than None to the result.



show_when Auto-Generation (Method 4)

During Method 4 project creation, after logic files are written, the CE scans:

• database/models.py — Enum or CheckConstraint values on the type column → discovers subtype names
• logic/logic_discovery/ — row.type == '...' guards → maps each subtype to its specific columns

It then writes show_when entries in ui/admin/admin.yaml for every subtype-specific column. Military columns use the is_military == 1 form (boolean discriminator).

For an existing project this step is skipped unless the user explicitly asks for it, to avoid overwriting manual admin.yaml customisations.
