Customs Demo

summary

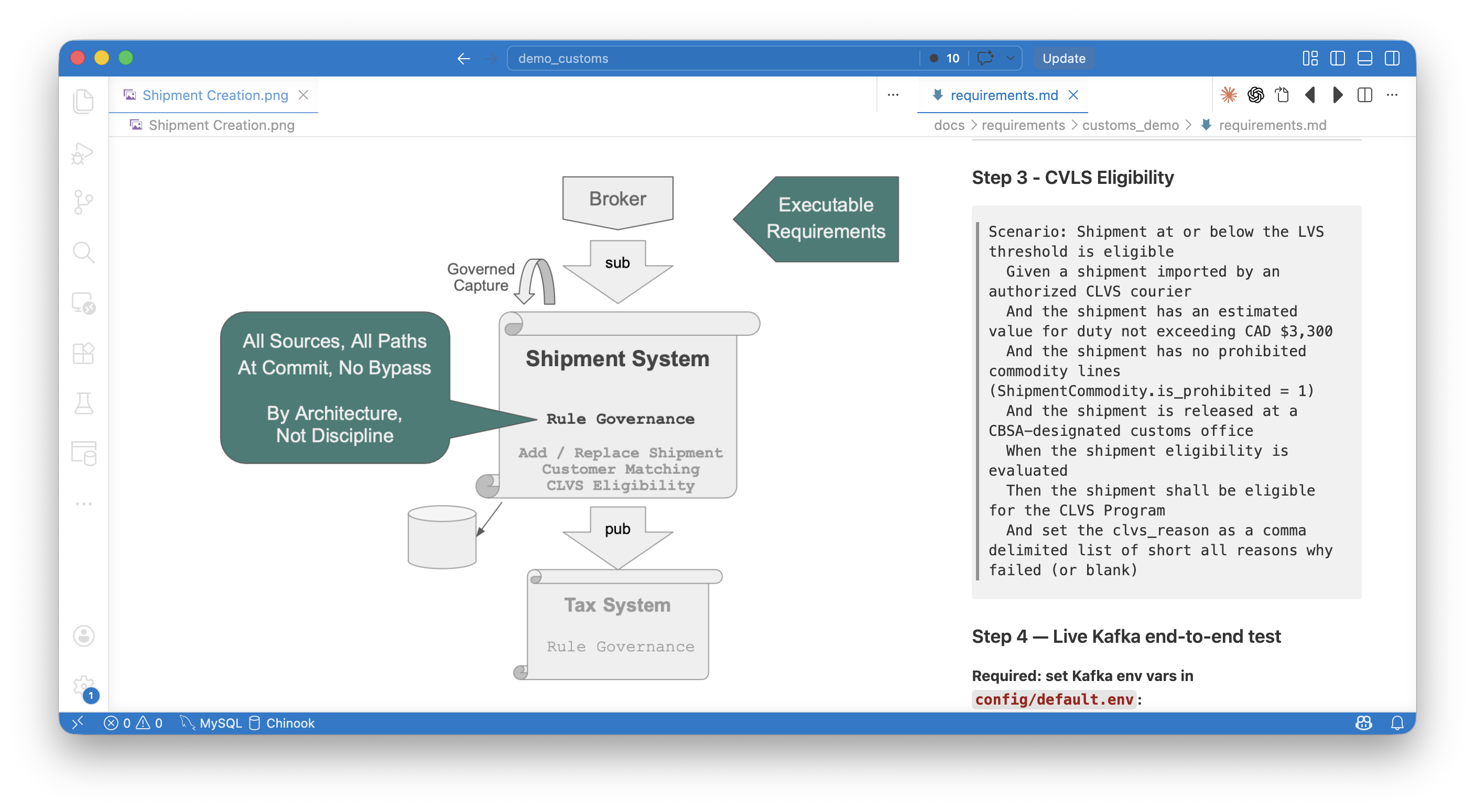

Executable Requirements - Governance By Architecture, At Scale

summary



The Underlying Logic Architecture

summary



Claude Code CLI Instructions - how to build this project


Establish Initial State, Execute Requirements
# A - Create the project (already done, typically from Manager)
genai-logic create  --project_name=demo_customs --db_url=sqlite:///samples/requirements/customs_demo/database/customs.sqlite

# B - use the shared Manager venv (do not create a local project .venv)
! source ../venv/bin/activate

# C - activate Claude Code in the VSCode terminal
! claude

# D - load context engineering to teach claude about rules, GenAI-Logic
Please load `.github/.copilot-instructions.md`.

# E - in created project, get the requirements (win: Copy-Item -Path "..\samples\requirements\customs_demo\*" -Destination "." -Recurse -Force -Verbose 4>&1).Count)
! cp -rv ../samples/requirements/customs_demo/. . | wc -l

# F - required hardening for delete integrity (no orphans after parent delete via API):
in database/models.py, add ORM relationship cascade on Shipment child lists
(pattern: relationship(cascade="all, delete", back_populates="...")).
Apply to:
   Shipment.PieceList
   Shipment.ShipmentCommodityList
   Shipment.SpecialHandlingList
   Shipment.ShipmentPartyList

# G - ask Coding Agent to create the system by implementing the requirements
implement requirements docs/requirements/customs_demo



Executive Summary

This is a proof of what changes when business logic is governed by architecture, not discipline — built to the scope and standards of a real enterprise integration, in 2 days.

Delivery Speed — 2 Days, Not Months
Built in 2 days by one engineer. The scope — Kafka 2-message pipeline, XML parsing, 7-table persistence, importer matching, CLVS eligibility rules, REST API, Admin UI, and standard enterprise delivery standards — is not a toy project. A traditional team would scope this in weeks and deliver in months.

Curious what your team would estimate? Give your AI this requirements document and ask.

Business Inputs — Not Technical Specs
Traditional delivery starts from technical inputs: schema DDL, API specs, field-mapping logic expressed in developer terms. This started from business inputs — artifacts the business team already owned.

A plain-English requirements document. An existing database schema. An XML field-mapping spreadsheet. A sample message. GenAI-Logic's Executable Requirements workflow compiled these directly into a running, governed system — no translation layer required.

Speed is not a tradeoff against governance here. Both are consequences of the same thing: declarative rules replace procedural code, so the system is both faster to build and impossible to bypass.

Governance — No Bypass
Business rules are enforced at the commit point — every transaction, every source, automatically. Not because developers remembered. Because there is no other path.

A new developer, a new agent, a new integration: all inherit the same rules automatically. Governed by architecture, not discipline.

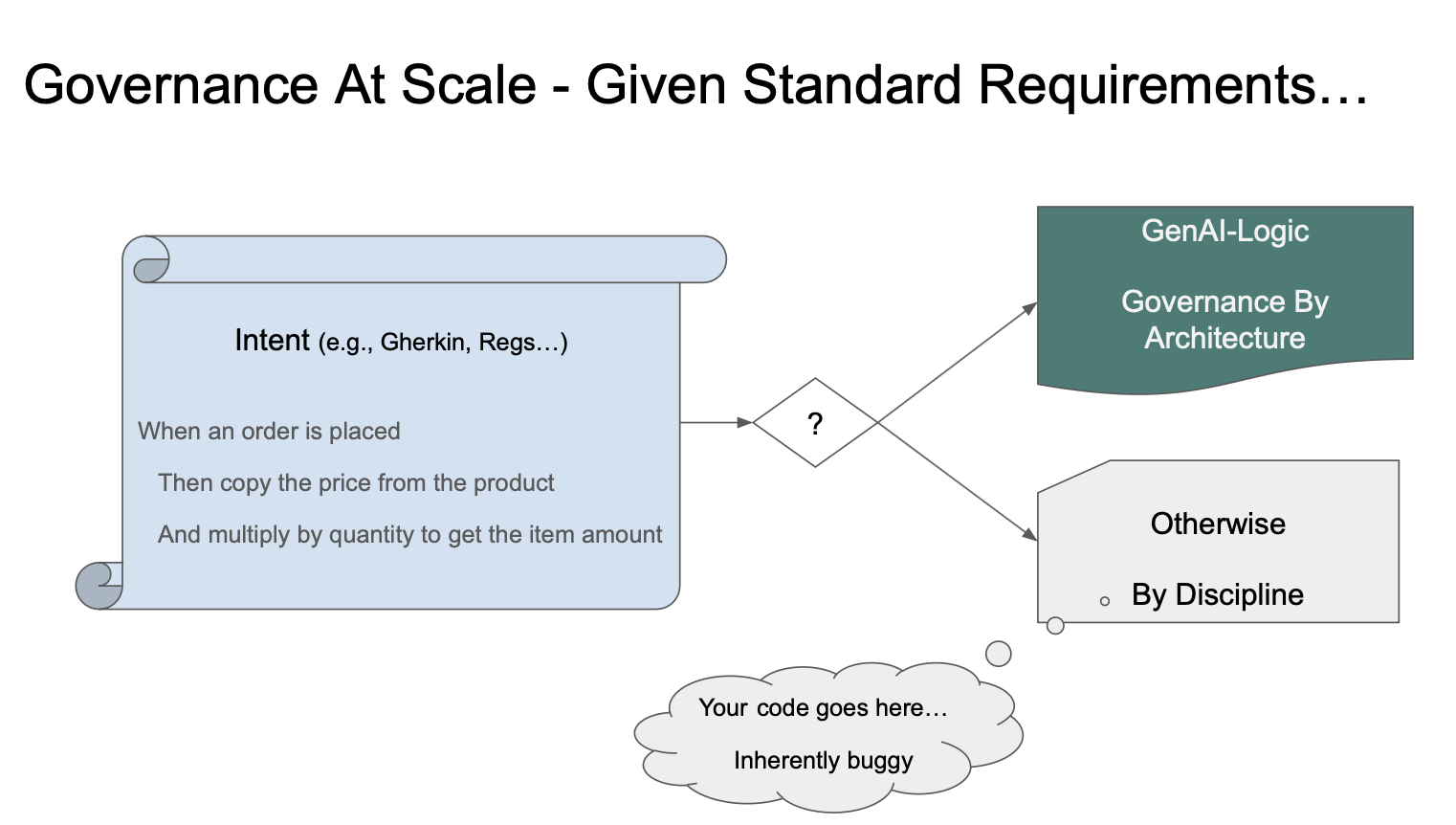

Governance — At Scale
Governance by developer discipline fails at scale — routinely, and at significant cost. Rules get missed. New endpoints, new agents, new integrations don't inherit them. The larger the system, the more paths, and the more paths, the more misses.

Governance by architecture doesn't degrade. Rules enforced at the commit point run on every transaction, regardless of source — API, UI, agent, or integration added three years later. That guarantee doesn't erode as the system grows.

AI makes this available at org-wide scale. Requirements your teams already produce — plain English, Gherkin, regulation text — become the input. GenAI-Logic compiles them into enforced rules. The same workflow, every project, every team.

Measuring Adoption — the Governance Report
Governance by architecture only holds if teams are actually using rules. GenAI-Logic includes a built-in health check (vital signs) that produces a Governance Report scoring each project on two dimensions: Coverage (weighted rules per domain table — are the right tables governed?) and Integrity (anti-pattern detection — is the rule code correct?). A portfolio leaderboard makes adoption visible across teams without reading a line of code. The same tool that enforces rules also measures whether they're being used.

For the full story on Executable Requirements, click here.
For Project Governance Report, click here.



Project Overview

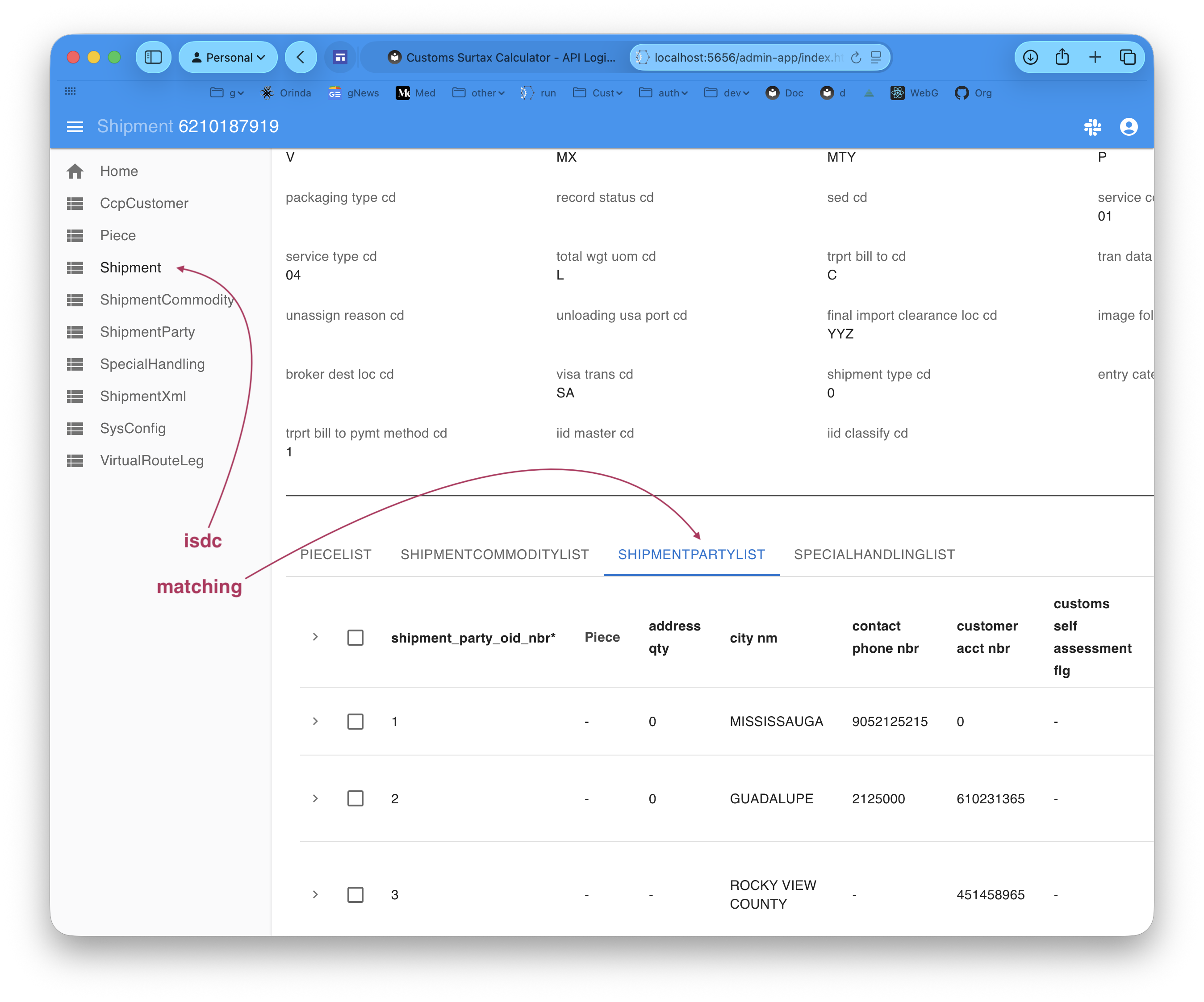

You can examine the Shipment database to verify parties created by matching:

summary

An enterprise integration (EAI) microservice that ingests CIMCorp/ISDC customs shipment data from a Kafka topic, parses the canonical XML format, and persists the resulting shipment records — with full REST API, Admin UI, and a declarative business logic layer ready for governance rules.

Inputs (in docs/elmo_creation/): - Database — 7 tables, 130+ columns - XML-to-DB field mapping (Classify Entity Details.csv) - Sample message (sample_data/MDE-CDV-HVS-WR-Rev260328.xml)

Outputs: - Working Kafka consumer pipeline: isdc → ShipmentXml → isdc_processed → DB tables
- JSON:API for all tables, Admin UI, declarative logic engine - Matching: look up the matching Customer - found: set Shipment.trprt_bill_to_acct_nbr == CcpCustomer.duty_bill_to_acct_nbr and create a ShipmentParty row - no match: log a warning, do nothing.



Basic Design - 2 transaction message processing

  1. integration/kafka/kafka_subscribe_discovery/isdc.py - isdc
    • reads message, inserts into ShipmentXml (Tx 1)
    • this ensures messages are saved, even if the xml contains errors
  2. logic/logic_discovery/isdc_consume.py
    • ShipmentXml insert → publishes raw payload to topic: isdc_processed
  3. integration/kafka/kafka_subscribe_discovery/isdc.py - isdc_processed
    • parses xml → database tables (Tx 2)
  4. api/api_discovery/isdc_kafka_consume_debug.py
    • /consume_debug/isdc bypasses Kafka — calls the same parser directly (no Kafka required for dev/test)
  5. Matching: logic/logic_discovery/shipment_matching.py — early_row_event on Shipment insert
    • Looks up CcpCustomer by duty_bill_to_acct_nbr == trprt_bill_to_acct_nbr
    • Match found: creates a ShipmentParty importer row; (if no match, logs a warning)
  6. CLVS: logic/logic_discovery/clvs_eligibility.py - computes eligibility



Appendices

2-message Pattern

Duplicate policy — default is replace: an existing Shipment graph is deleted (ORM cascade) and the new parsed graph inserted. Set env var ISDC_DUPLICATE_POLICY=fail to raise an error on duplicate LOCAL_SHIPMENT_OID_NBR instead.

Design note — why 2 messages? The original design used 1 message: receive XML, save ShipmentXml, parse into DB tables — all in one transaction. The 2-message design now in place was adopted after reviewing production reliability requirements.

The key advantage is transaction isolation. A tempting alternative to 2 messages is a try/catch in the single transaction: always save ShipmentXml, best-effort parse the DB tables. This breaks down in SQLAlchemy: a failed flush (e.g. parser error mid-parse) poisons the session — you can't commit the blob in the same session after an exception. You'd need two explicit back-to-back transactions, plus a third to write the error back to ShipmentXml. That's messy and fragile.

The 2-message design solves this cleanly: Kafka acts as the durable commit boundary between ingestion and processing. The blob is always saved (transaction 1), and a parse failure only affects transaction 2 — no session gymnastics, and back-pressure decoupling is a free bonus.



Replace and Match Example

Process Shipment - no match
curl 'http://localhost:5656/consume_debug/isdc?file=docs/requirements/customs_demo/message_formats/demo-01-no-match.xml'

Verify the Shipment data, then

Process Shipment Replacement - match
curl 'http://localhost:5656/consume_debug/isdc?file=docs/requirements/customs_demo/message_formats/demo-02-match-replace.xml'
