TL;DR - Integrated Deterministic and AI Rules

AI provides creativity and reasoning that businesses want... how do we provide that, with deterministic goverance?.

For example - a business can continue to operate even if a tanker has blocked the Suez canal by choosing an alternate supplier, as declared in the prompt shown below (rule 6).

This sample illustrates:

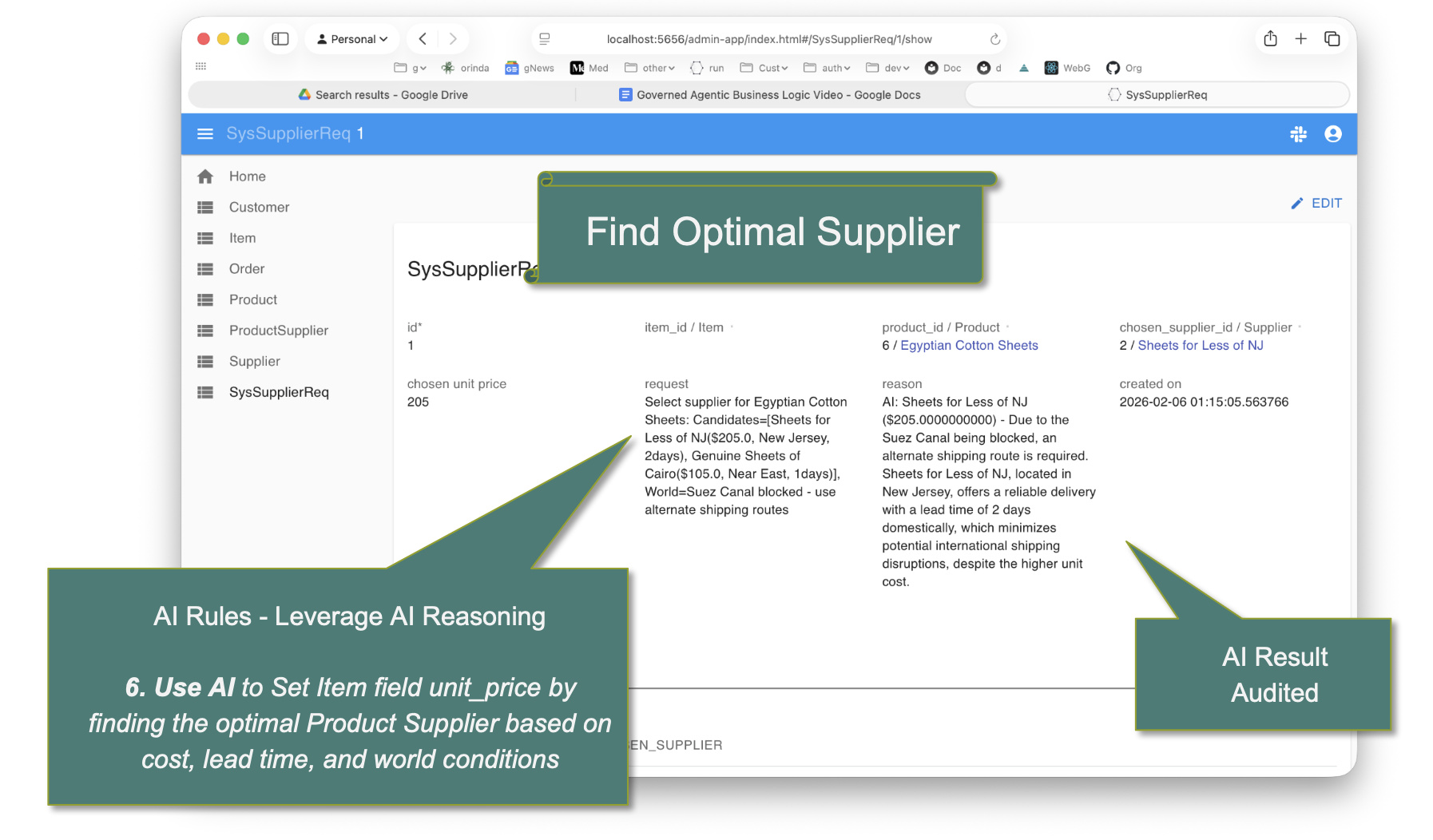

  1. Using AI Rules to pick the optimal supplier (calls AI at runtime, with auditing shown above)
  2. Other rules provide Governance - whether AI rules, or calling client (e.g., check credit)




🤖 Bootstrap Copilot by pasting the following into the chat
Please load `.github/.copilot-instructions.md`


Declare and Test

If you have not already created the sample project, you can create it in the Manager using Copilot:

 Create a system named basic_demo from samples/dbs/basic_demo.sqlite.

Then:

Paste this logic into Copilot chat (note: takes several minutes)

On Placing Orders, Check Credit:

  1. The Customer's balance is less than the credit limit
  2. The Customer's balance is the sum of the Order amount_total where date_shipped is null
  3. The Order's amount_total is the sum of the Item amount
  4. The Item amount is the quantity * unit_price
  5. The Product count suppliers is the sum of the Product Suppliers
  6. Use AI to Set Item field unit_price by finding the optimal Product Supplier based on cost, lead time, and world conditions

Use case: App Integration

  1. Send the Order to Kafka topic 'order_shipping' if the date_shipped is not None

Developers review this DSL before execution, providing a natural human-in-the-loop checkpoint.

To test:

  1. Update config/ai_test_context.yaml to signify Suez Canal blocked
  2. Start the Server
  3. Order some Egyptian Cotton Sheets (use in the Admin App, or test MCP using Copilot - paste:
     On Alice's first order, include 100 Egyptian Cotton Sheets
  4. Verify the AI call - use the Admin App to view the audit trail (top of this page)



Background Concepts

Unified Deterministic / Probablilistic Logic

Agentic systems are evolving quickly, and a clearer architectural picture is forming:

Not AI vs Rules — AI and Rules together.

Different kinds of logic naturally call for different tools, as in this unified example:

  • Deterministic Logic — logic that must always be correct, consistent, and governed.
    Example: “Customer balance must not exceed credit limit.”

  • AI Logic — logic that benefits from exploration, adaptation, and probabilistic reasoning.
    Example: “Which supplier can still deliver if shipping lanes are disrupted?”

    • Creative reasoning needs boundaries.
      Deterministic rules supply the guardrails that keep outcomes correct, consistent, and governed.


Logic Architecture

GenAI-Logic provides support for AI Rules:

  • At declaration time (e.g., in VSCode/Copilot):

    • D1: Accepts a unified declarative NL request
    • D2. Uses GenAI to create
      • Rules (in Python DSL: Domain Specific Logic) for deterministic Logic
      • LLM calls for Probablistic

  • At runtime, during commit

    • R1: DSL is executed by the Rules Engine (deterministic - no NL processing occurs)
    • R2: LLM calls are made to compute values (e.g., optimal supplier)
    • The rules engine ensures that R2 logic results are governed by R1 rules

Bus-Logic-Engine

AI logic become far more compelling when probabilistic intent is paired with deterministic enforcement.

This "governable intent" model aligns with enterprise expectations —
adaptive where helpful, reliable where essential.

GenAI-Logic unifies probabilistic intent with deterministic enforcement in a single model


AI Logic Pattern: Pick Optimal

In this example, we leverage AI by providing a list of suppliers and the selection criteria ("finding the optimal Product Supplier based on cost, lead time, and world conditions").

Pattern: AI Intelligent Selection From Options

Invoke AI providing a prompt (find optimal ) and a list of candidates.

AI computes the selected object.

Examples:

  1. Choose Optimal Supplier (this example)
  2. Shipping Carrier/Route Selection
  3. Dynamic Pricing/Discount Strategy
  4. Task/Resource Assignment
  5. Inventory Sourcing/Replenishment



Design

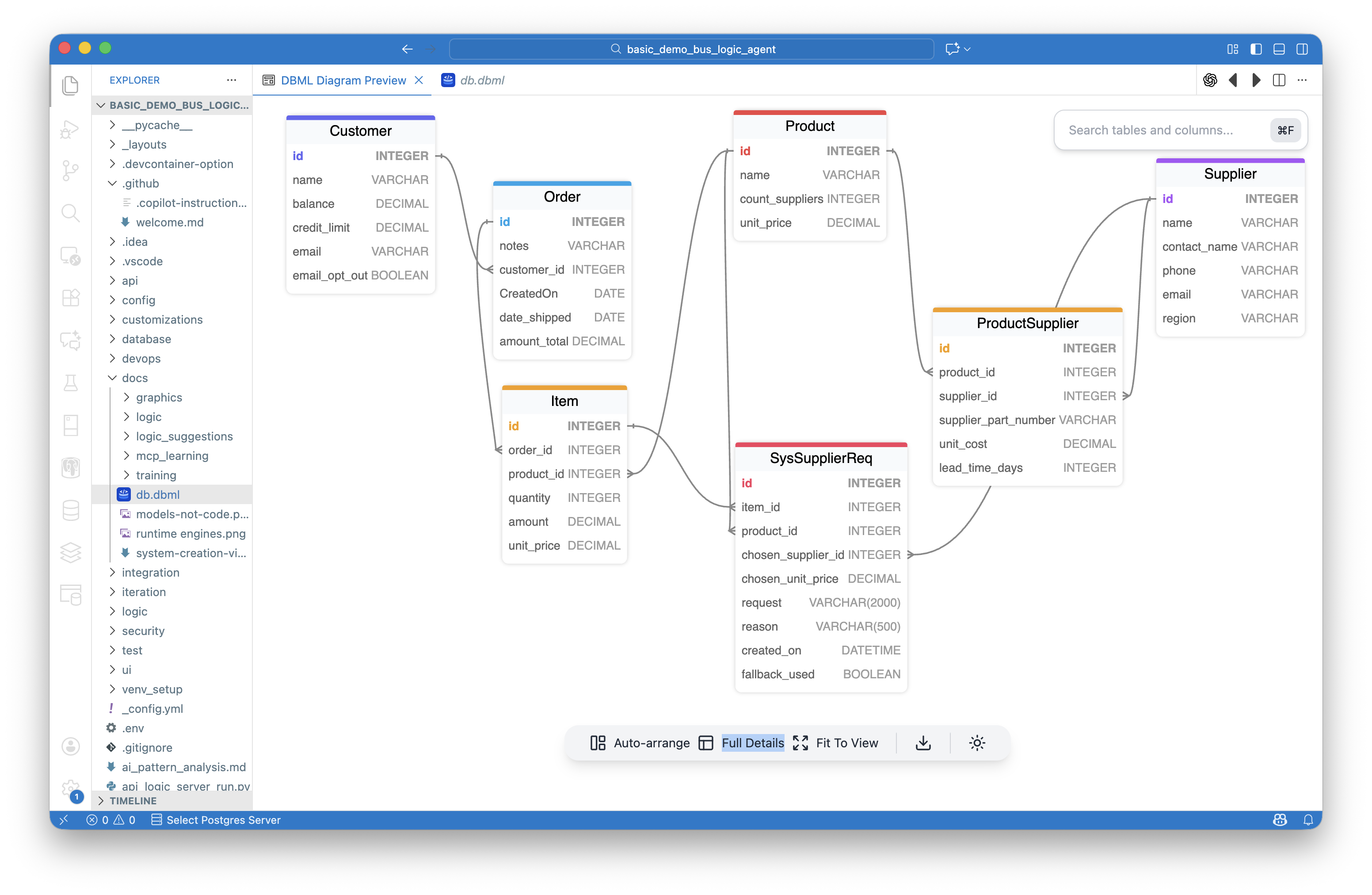

Data Model

Observe:

  1. Products can have multiple suppliers (selection candidates)
  2. The Audit table SysSupplierReq - rows are created for each AI request

basic_demo_data_model

AI Code Generation via Context Engineering

AI was not born understanding how to use rules to solve this. We provide extensive context engineering to automate this pattern.

AI can not only create the implementation, it can explain it:

AI Supplier Selection Logic Flow

Initiating Event: When an Item is inserted or its product_id changes

Flow (see files under logic/logic_discovery/place_order):

  1. Early Row Event on Item Fires - see ./check_credit.py

    • Early row event: set_item_unit_price_from_supplier()
    • Checks if suppliers exist for the product (fallback to Product.unit_price if no suppliers)
    • Invokes wrapper

  2. Wrapper Function invokes request pattern on SysSupplierReq

    • See ./ai_requests/supplier_selection.py -- get_supplier_selection_from_ai()

    • Hides complexity from rule, above, by using the Request Pattern:

      • Creates new SysSupplierReq row instance
      • Sets parent context links (product_id, item_id)
      • Inserts the request row: SysSupplierReq - runs its logic...

  3. Insert → early_row_event: select_supplier_via_ai() - Request Pattern implementation

    • See same file: ./ai_requests/supplier_selection.py
    • Get world conditions from config/ai_test_context.yaml (e.g., "Suez Canal blocked")
    • Sends supplier data (cost, lead time, region) + world conditions to OpenAI
    • AI analyzes and selects optimal supplier
    • Populates SysSupplierReq result fields: chosen_supplier_id, chosen_unit_price, reason, request

  4. Wrapper Returns → Returns populated SysSupplierReq row with AI results

    • Caller extracts: supplier_req.chosen_unit_price
    • Item's unit_price is set from this AI-chosen value

  5. Standard Rule Chaining provides Governance: Formula rules automatically recalculate Item.amount → Order.amount_total → Customer.balance, triggering credit limit constraint check

Key Pattern:

  1. The request pattern is commonly used to insert a row, where logic (such as early_row_event) provides integration services (e.g, invoke AI, messaging, email, etc), with automatic request auditing
  2. The wrapper hides Request Pattern complexity - caller just gets back a populated row object with AI results (chosen_supplier_id, chosen_unit_price, reason) plus full audit trail.
