AI Logic Implementation

Unified Logic Model — Combine deterministic rules with AI-powered creative reasoning

This describes the implementation for AI Logic created by GenAI.

Under Construction

Implementation Example

Use Case: Item needs unit_price (and optionally other values) from AI-selected supplier.

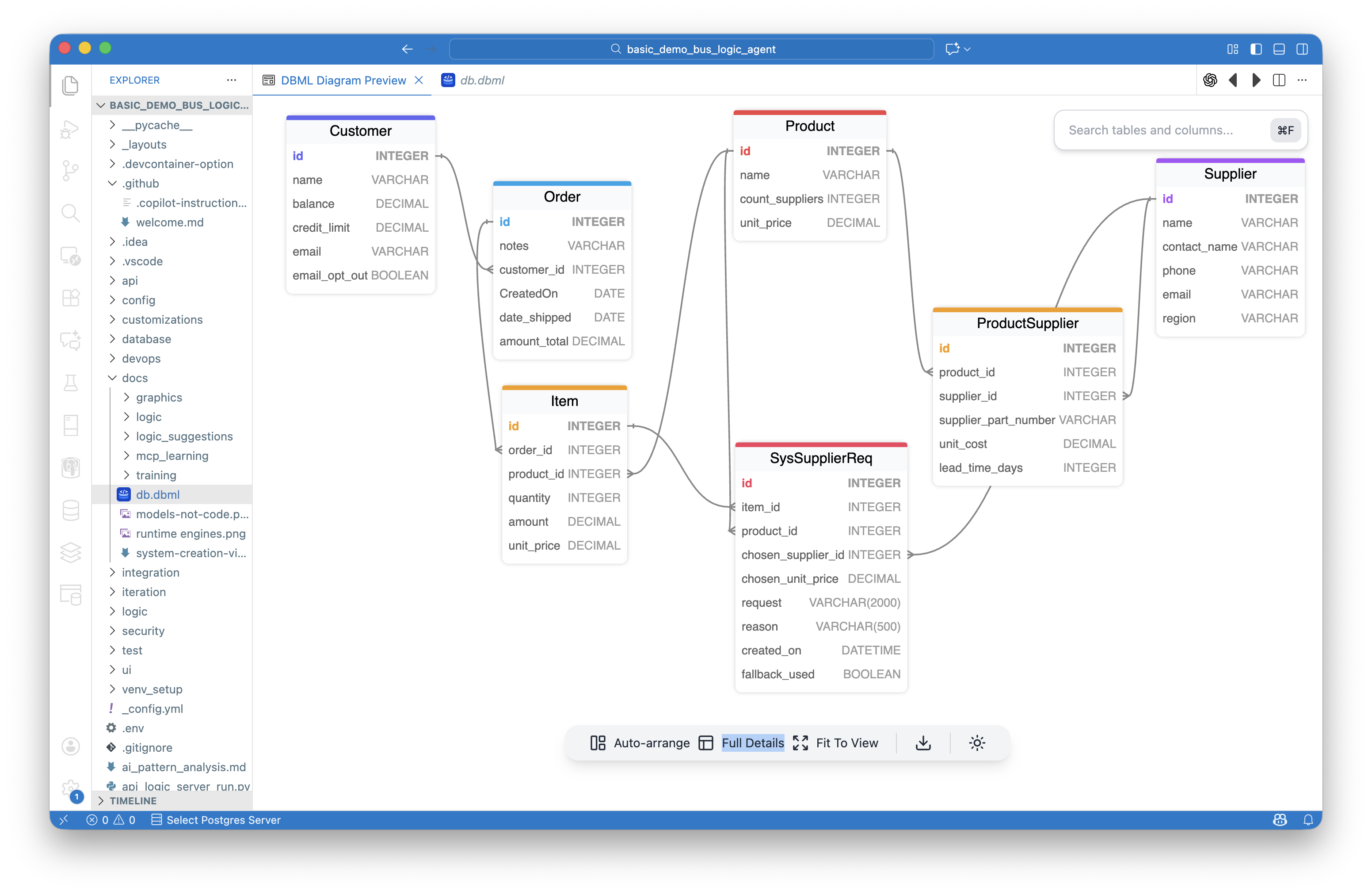

basic_demo_data_model

Natural Language Prompt

Use AI to Set Item field unit_price by finding the optimal Product Supplier

6. Item unit_price is derived as follows:
       - IF Product has suppliers,
             use AI to select optimal supplier based on cost, lead time, and world conditions
       - ELSE copy from Product.unit_price

Implementation

Request Table:

class SysSupplierReq(Base):
    __tablename__ = 'sys_supplier_req'

    # Standard AI Audit
    id = Column(Integer, primary_key=True)
    request = Column(String(2000))
    reason = Column(String(500))
    created_on = Column(DateTime, default=datetime.datetime.utcnow)
    fallback_used = Column(Boolean, default=False)

    # Parent Context Links
    item_id = Column(Integer, ForeignKey("item.id"))
    product_id = Column(Integer, ForeignKey("product.id"))

    # AI Results
    chosen_supplier_id = Column(Integer, ForeignKey("supplier.id"))
    chosen_unit_price = Column(DECIMAL)

AI Handler (in ai_requests/supplier_selection.py):

def declare_logic():
    """Register AI supplier selection handler."""
    Rule.early_row_event(
        on_class=models.SysSupplierReq,
        calling=supplier_id_from_ai
    )

def supplier_id_from_ai(row: models.SysSupplierReq, old_row, logic_row: LogicRow):
    """AI selects optimal supplier."""
    if not logic_row.is_inserted():
        return

    # Introspection-based AI value computation
    compute_ai_value(
        row=row,
        logic_row=logic_row,
        candidates='product.ProductSupplierList',
        optimize_for='fastest reliable delivery while keeping costs reasonable, considering world conditions',
        fallback='min:unit_cost'
    )

def get_supplier_selection_from_ai(product_id: int, item_id: int, logic_row: LogicRow):
    """Wrapper that hides Request Pattern. Returns populated SysSupplierReq object."""
    supplier_req_logic_row = logic_row.new_logic_row(models.SysSupplierReq)
    supplier_req = supplier_req_logic_row.row

    supplier_req.product_id = product_id
    supplier_req.item_id = item_id

    supplier_req_logic_row.insert(reason="AI supplier selection request")

    return supplier_req

compute_ai_value() API Reference

compute_ai_value(
    row,              # Request table row to populate with results
    logic_row,        # LogicBank LogicRow for logging and DB operations
    candidates,       # Relationship path to candidate objects (e.g., 'product.ProductSupplierList')
    optimize_for,     # Natural language optimization goal
    fallback          # Strategy when AI unavailable or fails
)

Parameters:

row — The request table instance (e.g., SysSupplierReq) where results will be stored
logic_row — LogicBank's LogicRow for logging and transaction management
candidates — Dot-notation path to navigate SQLAlchemy relationship (e.g., 'order.customer.PreferredSupplierList')
optimize_for — Natural language describing business objective (sent to AI)
fallback — Strategy when OpenAI API unavailable:
'min:field_name' — Select candidate with minimum value for field
'max:field_name' — Select candidate with maximum value for field
'first' — Use first candidate in list

What it does automatically:

Checks test context first (for reproducible testing)
Navigates relationship path to get candidate objects
Introspects all candidate fields via SQLAlchemy
Introspects request table chosen_* result columns
Maps AI response to result columns (e.g., chosen_supplier_id ← supplier_id)
Loads world conditions from config/ai_test_context.yaml
Calls OpenAI API with structured prompt
Handles graceful fallback when no API key
Converts types (Decimal for money, int for IDs)
Populates request field with candidate summary (names + prices)
Populates reason field with decision explanation (selected supplier name + reasoning)

Error Handling:

When AI call fails (no API key, network error, etc.): - Uses fallback strategy to select candidate - Sets fallback_used = True in request row - Populates request with candidate summary - Populates reason with fallback explanation and selected supplier - Transaction continues normally (no exception)

**Item Event Handler (in check_credit.py):**
```python
def declare_logic():
    # Other rules...
    Rule.early_row_event(on_class=models.Item, calling=set_item_unit_price_from_supplier)

def set_item_unit_price_from_supplier(row: models.Item, old_row: models.Item, logic_row):
    """
    Early event: Sets unit_price using AI if suppliers exist, else uses fallback.

    Fires on insert AND when product_id changes (copy rule semantics).
    """
    from logic.logic_discovery.ai_requests.supplier_selection import get_supplier_selection_from_ai

    # CRITICAL: Check delete first - old_row is None on delete
    if logic_row.is_deleted():
        return

    # Process on insert OR when product_id changes
    if not (logic_row.is_inserted() or row.product_id != old_row.product_id):
        return

    product = row.product

    # FALLBACK LOGIC when AI shouldn't/can't run:
    # Try reasonable default (copy from parent matching field), else fail-fast
    if product.count_suppliers == 0:
        # Reasonable default: copy from parent.unit_price (matching field name)
        if hasattr(product, 'unit_price') and product.unit_price is not None:
            logic_row.log(f"No suppliers for {product.name}, using product default price")
            row.unit_price = product.unit_price
            return
        else:
            # No obvious fallback - fail-fast with explicit TODO
            raise NotImplementedError(
                "TODO_AI_FALLBACK: Define fallback for Item.unit_price when no suppliers exist. "
                "Options: (1) Use a default constant, (2) Leave NULL if optional, "
                "(3) Raise error if required field, (4) Copy from another source"
            )

    # Product has suppliers - call AI wrapper (hides Request Pattern)
    logic_row.log(f"Product {product.name} has {product.count_suppliers} suppliers, requesting AI selection")
    supplier_req = get_supplier_selection_from_ai(
        product_id=row.product_id,
        item_id=row.id,
        logic_row=logic_row
    )

    # Extract AI-selected value(s)
    row.unit_price = supplier_req.chosen_unit_price

Fallback Strategy: Reasonable Default → Fail-Fast

CRITICAL: AI rules need fallback logic for cases when AI shouldn't/can't run.

Strategy: 1. Try reasonable default: Copy from parent field with matching name 2. If no obvious default: Raise NotImplementedError with TODO_AI_FALLBACK marker 3. Never silently fail: Force developer decision at generation time, not runtime

Benefits: - ✅ Prevents silent production failures - ✅ Code won't run until developer addresses edge cases - ✅ Clear markers for what needs attention - ✅ Works in dev/test, fails explicitly before production

For multi-value AI results: Apply per-field fallback strategy. Common: copy from parent matching field names. For fields with no obvious fallback, use TODO_AI_FALLBACK.

Example: In the code above, when product.count_suppliers == 0: - First tries: product.unit_price (matching field name) - If not available: Raises NotImplementedError with clear options

What Happens at Runtime

Item is inserted — Early event fires on Item
Event checks suppliers — If none, apply fallback; if yes, call wrapper
Wrapper creates request — Inserts SysSupplierReq row with context (item_id, product_id)
AI handler fires — Evaluates suppliers, selects best one
Request populated — chosen_supplier_id, chosen_unit_price, request, and reason stored
Wrapper returns object — Event receives populated SysSupplierReq
Event extracts values — Sets row.unit_price = supplier_req.chosen_unit_price (can extract other fields too)
Rules cascade — Item amount → Order total → Customer balance
Constraint checks — Credit limit enforced

Complete audit trail: Every AI decision is logged with full context and reasoning.

Extracting Multiple Values

Use Case: When you need multiple values from the AI selection, simply extract additional fields from the returned request object.

Example - Extract Multiple Values:

def assign_supplier_to_item(row: models.Item, old_row, logic_row: LogicRow):
    """
    Early event: AI selects supplier and populates multiple Item fields.
    """
    from logic.logic_discovery.ai_requests.supplier_selection import get_supplier_selection_from_ai

    if not logic_row.is_inserted():
        return

    # Call wrapper - returns populated request object
    req = get_supplier_selection_from_ai(
        product_id=row.product_id,
        item_id=row.id,
        logic_row=logic_row
    )

    # Extract whatever values you need from request object
    row.unit_price = req.chosen_unit_price              # Value 1
    row.supplier_id = req.chosen_supplier_id            # Value 2 (optional)
    row.lead_time_days = req.chosen_lead_time           # Value 3 (optional)

    logic_row.log(f"Supplier {req.chosen_supplier_id} selected: "
                  f"${req.chosen_unit_price}, delivery={req.chosen_lead_time} days")

Rule.early_row_event(on_class=Item, calling=assign_supplier_to_item)

Key Benefit: Wrapper returns full request object with all AI results; caller extracts whatever fields it needs (one or many)

Implementation Checklist

When implementing this pattern:

1. Identify Components

[ ] Receiver object (what needs values?)
[ ] Provider relationship path (where are candidates?)
[ ] Values needed (single or multiple?)

2. Design Request Table

[ ] Standard AI Audit: (id, request, reason, created_on, fallback_used)
[ ] Parent Context Links: FKs from prompt (item_id, product_id, etc.)
[ ] AI Results: Result columns via like-named mapping (chosen_*)

3. Create AI Handler

[ ] Early row event on request table
[ ] Call compute_ai_value() with candidates path
[ ] Specify optimization criteria

4. Create Wrapper Function

[ ] Use Request Pattern (new_logic_row())
[ ] Return request object
[ ] Document what result fields are available

5. Integrate with Early Event

[ ] Extract needed fields from returned request object
[ ] Can extract one field or many fields as needed

Common Issues

Delete Operations Crash

Problem: Early events fire on delete, but old_row is None.

Solution: Always check is_deleted() first:

def event_handler(row, old_row, logic_row):
    if logic_row.is_deleted():
        return
    # ... rest of logic that accesses old_row ...

Incomplete Audit Trail

Problem: Request/reason fields contain IDs or generic text, not useful for debugging.

Solution: Populate in AI handler with business names and values:

# BAD - Not useful
request = f"Product {product_id} supplier selection"
reason = "AI selected supplier"

# GOOD - Useful for debugging
request = f"Egyptian Cotton Sheets from Acme ($105) or Global ($110)"
reason = f"Selected Acme - lower cost ($105 vs $110), reliable delivery"

Integration: MCP AI Example — See the pattern in action
Logic: Rule Types — Declarative rule reference
Architecture: What Is GenAI? — Understanding AI + Logic
Study: Declarative vs. Procedural GenAI — A/B comparison

Summary

Business logic naturally divides into two categories:

Deterministic — Must be consistent, repeatable, verifiable
Creative — Benefits from judgment, context, adaptation

GenAI-Logic lets you express both in natural language and execute both together with proper governance.

The "Get Values from Best Candidate" pattern provides:

✅ AI-powered selection
✅ Complete audit trails
✅ Deterministic guardrails
✅ Flexible value extraction (one or many fields)
✅ Seamless rule integration

Not replacing one with the other — combining the strengths of both.

Appendix: Pattern Internals

This section provides deeper architectural insights into how the pattern works and why it's designed this way.

A. Request Table Field Discovery

The request table's three field types aren't arbitrary — they can be automatically derived:

Standard AI Audit (Generic Fields) - Always the same for ANY AI request - Provides complete audit trail - Fields: id, request, reason, created_on, fallback_used

Parent Context Links (Foreign Keys) - Derived from prompt analysis - Identifies which objects are involved - Example: "Item unit_price" → needs item_id, product_id

AI Results (Selected Values) - Inferred from provider table introspection - Uses like-named mapping convention - Example: Provider has supplier_id, unit_cost → Request gets chosen_supplier_id, chosen_unit_price

Key Insight: Future implementations could auto-generate the entire request table from: 1. Prompt text (identifies context entities) 2. Provider table schema (identifies available values) 3. Standard constants (always included)

B. Pattern Name Rationale

"Get Values from Best Candidate" was chosen to precisely capture what the pattern does:

"Get Values" - Extracting existing data from candidates - NOT computing new values or forecasting - Emphasizes data retrieval over calculation

"Best Candidate" - Selection/optimization decision by AI - Implies judgment and criteria evaluation - Distinguishes from random or sequential selection

"(from Candidate List)" - Multiple options to choose from - Not applicable to single-value computations - Emphasizes the selection aspect

What This Pattern Is NOT: - ❌ "Compute a value" — No candidates involved, pure calculation - ❌ "Transform data" — No selection decision - ❌ "Aggregate results" — No single best choice

C. Result Values vs. Audit Trail

An important architectural distinction in the supplier selection example:

Used in Business Logic: - chosen_unit_price → Sets Item.unit_price (extracted in event) - Participates in rule chaining (Item.amount → Order.amount_total → Customer.balance)

Audit Trail Only: - chosen_supplier_id → May or may not be used in downstream logic - Provides visibility: "Which supplier did AI pick?" - Enables analysis and debugging - Supports regulatory compliance

Why This Matters:

The event handler extracts whatever fields it needs from the request object. Some fields may be used in business logic, others are purely for audit trail.

Design Principle: Capture everything AI decides in the request table; event extracts what business logic needs.

D. Implementation: Generic vs. Hardwired

Current compute_ai_value() implementation status:

✅ Already Generic (Introspection-Based): - Candidate discovery via relationship navigation - Field introspection via SQLAlchemy - Relationship traversal (e.g., supplier.name, supplier.region) - Graceful fallback strategies

❌ Still Hardwired (Needs Generalization): - Result column mapping in _map_ai_response():

row.chosen_supplier_id = int(chosen_id)      # Hardcoded field names
row.chosen_unit_price = Decimal(chosen_price)

- Fallback mapping in _apply_fallback():

if hasattr(chosen, 'supplier_id'):     # Supplier-specific
    row.chosen_supplier_id = ...

- Prompt building in _build_prompt():

"You are optimizing supplier selection."  # Domain-specific text

Future Enhancement:

Full introspection of chosen_* columns on request table would make the pattern completely generic:

# Discover result columns dynamically
for column in inspect(row.__class__).columns:
    if column.key.startswith('chosen_'):
        # Map from AI response automatically
        source_field = column.key.replace('chosen_', '')
        row[column.key] = ai_response[source_field]

E. Test Context Priority

compute_ai_value() checks config/ai_test_context.yaml before checking for OpenAI API key. This design choice enables:

Priority Order: 1. Test context (if exists) → Use predetermined values 2. OpenAI API (if key available) → Real AI decision 3. Fallback strategy → Deterministic selection

Benefits:

Deterministic Testing - Same input → Same output (reproducible) - No variance from AI responses - Predictable test outcomes

CI/CD Integration - Run tests without OpenAI API key - No network dependencies - Fast execution (no API latency)

Offline Development - Work without internet connection - No API costs during development - Faster iteration cycles

Example Test Context:

# config/ai_test_context.yaml
selected_supplier_id: 2
selected_unit_price: 105.0
reasoning: "Test context: predetermined supplier selection"
world_conditions: "Test scenario: normal operations"

Result: Full test coverage of AI-driven logic without actual AI calls.

F. Why Object Return Pattern?

The wrapper returns the full request object with all AI results:

Design:

def get_supplier_selection_from_ai(product_id, item_id, logic_row):
    # ... create and populate request ...
    return supplier_req  # Returns full SysSupplierReq object

Event extracts what it needs:

def set_item_unit_price_from_supplier(row, old_row, logic_row):
    req = get_supplier_selection_from_ai(row.product_id, row.id, logic_row)
    row.unit_price = req.chosen_unit_price          # Extract one field
    # row.supplier_id = req.chosen_supplier_id      # Can extract more if needed
    # row.lead_time = req.chosen_lead_time          # Flexible based on use case

Key Benefits:

✅ One implementation serves all use cases
✅ Caller extracts what it needs (one or many fields)
✅ Request object always available for audit
✅ Natural object-oriented pattern
✅ Easy to add new result fields without changing wrapper

End of Appendix
