Ontimize Overview

Under Construction - Beta

💡 TL;DR - Front Office App Dev

To complement the Admin App, API Logic Server can automatically create a 'starter kit' Angular app, using Ontimize, a proven app framework. This approach provides the features outlined in Custom Web Apps:

  1. Faster and simpler automated creation: the system creates a default app model, and uses that to create a default app, in seconds.

  2. Simpler customization: it is orders of magnitude simpler to tweak the properties of a generated app than to create the app by hand. You can customize at 2 levels:

    a. The generated app for full control: you can edit the generated app (HTML, Typescript, CSS).

    b. The app model: the app is generated from a yaml model that designates the components for tables (grid, card, tree, dialog) and fields (text, image, combo, etc). You can modify the yaml model to rebuild the app.

This technology is currently in preview state - not ready for production. Please contact us if you would like to try it, and provide feedback.



Ontimize - Angular Starter Kit

What is Ontimize Web? See the Playground Ontimize Web site:

Ontimize Web is web application framework based on Angular for building business software. Ontimize Web makes use of Angular framework and its UI Component framework (Angular Material) to provide a set of reusable, well-tested and accessible components apart from a number of standard services and functionalities. This includes a wealth of rich UI components (editable grid, charts, reports, tree, etc).



API Logic Server Integration

While a separate product, Ontimize is highly integrated with API Logic Server:

  1. Unified Database: driven by the same Data Model, and underlying JSON:API / logic
  2. Unified Repository: Artifacts are files stored in your project directory for unified source, and managed by any standard IDE
  3. Shared Dev Server: the API Logic Server serves the API, the Admin App, and the Ontimize App. This simplifies development

It should be possible for users with limited Python, Flask, SQLAlchemy, JavaScript technology (npm build, etc), or Ontimize knowledge to
1. Create a backend API
2. Declare rules for multi-table derivations and constraints
3. Create a front office Ontimize app, and
4. Make HTML UX page customizations

As you can see below, you are no longer limited to simple master/detail screens:

  1. A Chart (via the hamburger window - charts on demand)

Ontimize Chart

  1. Card/Grid Template This will show employees as image cards. The grid_items are the attributes to show below the image. The grid_image is the path to display the image using an href style path.

Ontimize Grid

    home_template: grid_template.html
    grid_items: 'EmployeeType, LastName,FirstName,Address, Country, HomePhone'
    grid_image: PhotoPath
3. A nested grid example below which nests an Item grid within an Order grid:

Ontimize Nested Grid   This will show the normal Home page grid but it will select the first tabgroup (onetomany) to include as an expandable grid. In the Northwind admin_model.yaml file - change the entity Order home_template.

 home_template: home_template_expand.html



Ontimize Components

Components (like nested grid) are a key element. As you can see from the grid component, using a component means you provide a combination of html, css and typescript. There are analogous components for cards, trees, dialogs, graphs, charts, maps and fields (text, image, combo, etc).



Concepts: Templates, Models

Each component has its own unique html code (including properties), css and typescript. So, changing from a list to a grid would be a complex task.

So, API Logic Server introduces a template-based application model:

  • Template: a macro-expansible version of a template, bundling its html, css and typescript. The template is a 'generation ready' component.

  • Model: a YAML file that designates the templates for tables (grid, card, tree, dialog) and fields (text, image, combo, date, currency, etc). The creation process macro-expands the designated templates, creating the full app, which you can then customize.

So, typical dev cycle would be to tune the model to designate the templates,
then fine-tune the generated app by editing components.

Templates are created into your project:

models and templates



Custom App Procedures

A default Ontimize app is created automatically when you create projects with security. You can also create additional apps using the als app-create as described below.



1. Create Project

One way is to create an ApiLogicServer project, specifying --auth-provider-type=sql:

als create --project_name=ApiLogicProject --db-url= --auth-provider-type=sql
Note: Security must be enabled for Ontimize client (see: als add-auth)

This creates a project from your database (here, the default sample), which you can open and execute in your IDE. It includes an API, the Admin App, and the default custom app.

Initially, you may wish to skip to step 2 to run the default custom app.



  - Default App Created

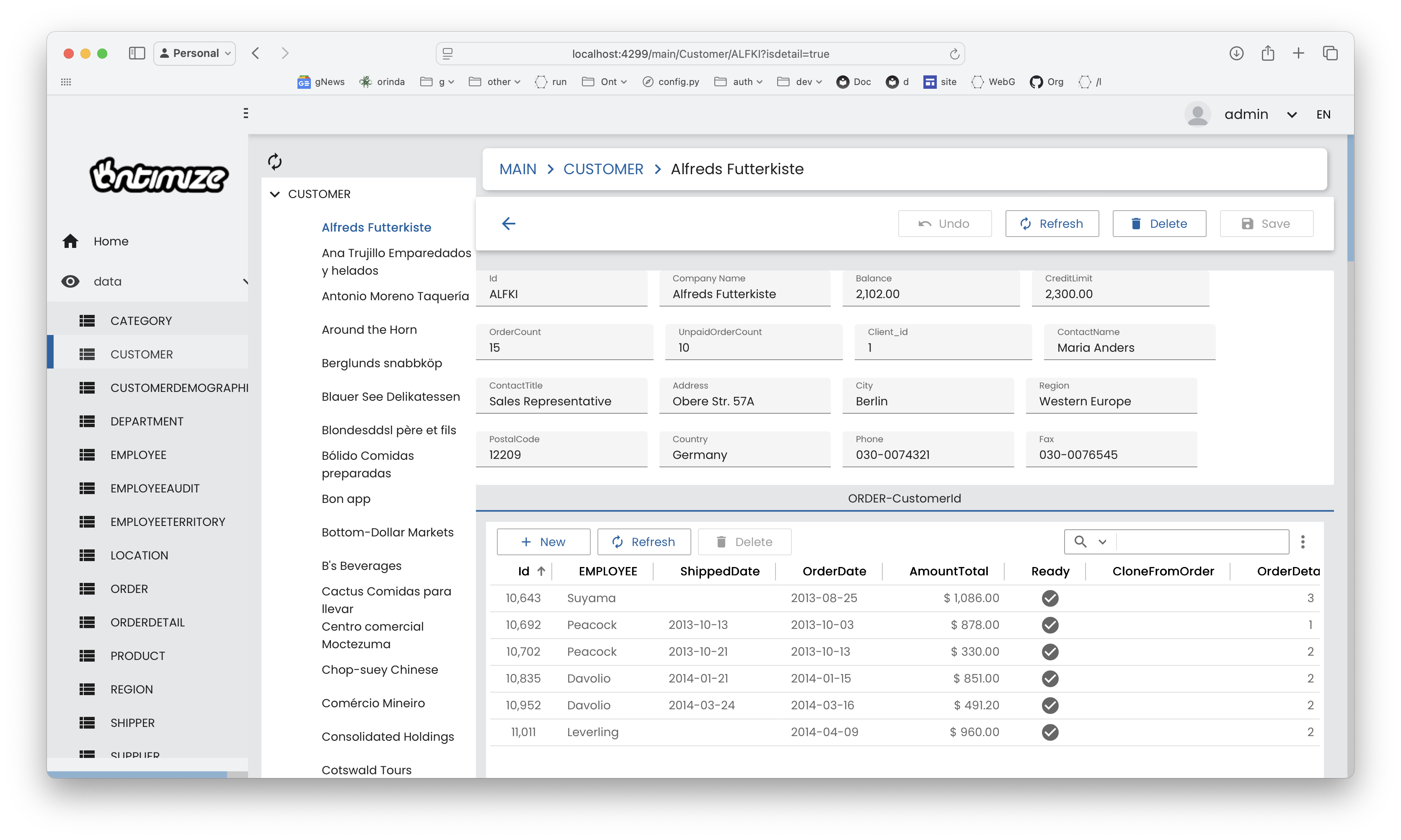

If you create your app with authorization, a default Ontimize app will be created as a ui/app directory, with a full Ontimize default app.



  - Parallel Logic/API Dev

At this point, distinct dev teams can safely proceed in parallel:

  • backend: develop logic and custom APIs (e.g., for application integration)
  • ui: proceed as described below

As noted earlier:

  • logic is automatically factored out of ui code (in particular, not in controllers). This increases re-use across apps, and re-use for integration

  • ui dev is not dependent on server api creation -- JSON:APIs are self-serve, so ui developers are not blocked by backend api



2. Run

Execution is standard to Ontimize (assumes the installation of NPM and NodeJS).

cd ui/app
npm install
npm start

Browse to localhost:4299, and login as user: admin password:p.



3. Customize

The simplest way to introduce rich components is to specify them in the app model, and the rebuild the app. Iterate this process until you have the right templates, then customize the created app.

customize

3a. Enable Security

To enable Keycloak - both ApiLogicServer and your Ontimize application need to be configured for Keycloak. Go to config/configy.py and modify the Keycloak settings below (if you are running our local Keycloak Docker container use these defaults.)

keycloak_url: http://localhost:8080
keycloak_realm: kcals
keycloak_client_id: alsclient

  This will inject into src/app.module.ts the keycloak settings.

    {% if use_keycloak %}
    const keycloakOptions: KeycloakOptions = {
    config: {
        url: "{{ keycloak_url }}",
        realm: "{{ keycloak_realm }}",
        clientId: "{{ keycloak_client_id }}"
    },
    initOptions: {
        onLoad: 'login-required'
    }
    };
{% endif %}
Enable Keycloak for the ALS server and Ontimize client to use:
    als add-auth --provider-type=keycloak


3b. Edit the YAML Model

Edit to remove unwanted entities, order columns, define column or page templates, etc.

You can edit the ui/app/app_model.yaml file directly, or use the provided model editor gui.

Show me how -- Edit Model



app_create

3c. Rebuild App

Then, rebuild your application (Note: this will overwrite all files in your Ontimize app directory):

PRO TIP: create a new application (app-create) with the edited app_model.yaml and merge the changes for the selected components back into the original app.

ApiLogicServer app-build --app=app

# Build or ReBuild a single API Endpoint
ApiLogicServer app-build --app=app --api-endpoint=Customer

3d. Customize Created App

This will use the data model to build an Ontimize app.

You can then use your IDE or other tooling (e.g., Ontimize CLI) to edit the artifacts to customize the look and feel.

Then, repeat 2. Run, above.

Show me how -- Customize Application



app_create



4. Create Additional Apps

To create a new Ontimize application (perhaps the model or database has changed) or you have new templates to test.

With the project open in your IDE, use the terminal window to create a new Ontimize application in a named directory under 'ui':

ApiLogicServer app-create --app=app2
cd ui/app2
npm install

This creates ui/app2/app_model.yaml and installs the Ontimize 'seed' NodejS package and dependent node_modules.

ApiLogicServer app-build --app=app2
cd ui/app2
npm start

Dockerize Yaml

Each application already has a Dockerfile (which can be edited)

cd ui/{myapp}
docker build -f Dockerfile -t {gitrepo}/{myappname} --rm .

Appendices

Yaml Model Editor

The Yaml editor allows the developer the ability to manage yaml files for editing using an Ontimize built application. Use the "Manage yaml files" New - to add your yaml file and then click upload (save) to populate the screens with entities, attributes, and tab groups. Once complete, use the download_flag (save) to export the yaml to the 'ui' directory (ui/admin_model_merge.yaml) and compare/merge to your original admin_model.yaml in your ontimize application folder. The open source application can be found here:

git clone https://github.com/tylerm007/ontimize_yaml_view
cd ontimize_yaml_view
code .
press f5

Start Ontimize App Model Editor

The App Model Editor simplifies managing yaml files, using an Ontimize built application. See App Model Editor for more information.

cd ui/yaml
npm install
npm start

#go to http://localhost:4298 (user: admin password: p)

Ontimize app_model.yaml

The app_model.yaml file is created during the "app-create" or "create" phase and is based on the react-admin ui/admin.yaml file. Each entity, column, and tab_group is exposed with additional metadata. When the "app-build" is invoked, these properties are used to populate the templates (html, scss, and typescript) for each page. If the "exclude" flag is set to 'false' - the entity, attribute, or relationship will be excluded from the page. The "visible" column flag only applies to the Home table columns appearing in the grid.

Entity

Use the Ontimize editor to exclude a selected entity or change the titles.

Edit Entity

field Description
Entity name name of API endpoint {{ entity }}
Title display name used for {{ title }}
Primary Key array of primary keys {{ primaryKeys }}
Favorite used for list-picker display
Mode tab or dialog style {{ editMode }}
Menu Group used to organize entity into menu groups
Exclude if true - skip this API endpoint in the first page generation

Attributes

Use the Ontimize editor to change the label, tooltip, exclude selected attributes, include attribute in the search or sort, enable or mark fields as required, and include visible in the home table display.

Edit Attributes

field Description
Entity Name name of api endpoint
Attribute name of API attribute {{ attr }}
Title label used for this attribute {{ label }}
Template Name column template (pick list)
Search is this field included in search
Sort is this field included in sort
Required is this field marked as required
Excluded exclude this attribute from detail/new/home pages
Visible is this attribute visible on home table {{ visibleColumns }}
DataType the internal datatype
Tooltip hover value for attribute
Default Value value to show on new page

Relationships (TabGroup)

Use the Ontimize editor to exclude tab on detail page (tomany) or change the tile used to display.

Edit Tab Groups

field Description
Entity Name name of api endpoint
Tab Entity the name of the other end of the relationship
Direction toone (parent) or tomnay (children)
Relationship name defined in SQLAlchemy
label Tab Display name
Exclude skip this relationship for all tabs and lookups
Foreign Keys array of values

Global Settings

These values are injected into the various entity and attribute to provide and set global values. New values can be added for new templates.

Values

field Description
Include Translation set to true and then do an app-build to generate Spanish translation (assets/Ii8n/es.json)
Currency Symbol set for locale $

Existing Column Templates

    ("checkbox", "o_checkbox.html"),
    ("check_circle", "check_circle_template.html"),
    ("combo", "o_combo_input.html"),
    ("currency", "currency_template.html"),
    ("date", "date_template.html"),
    ("email", "email_template.html"),
    ("file", "file_template.html"),
    ("html", "html_template.html"),
    ("integer", "integer_template.html"),
    ("list", "list-picker.html"),
    ("nif", "o_nif_input.html"),
    ("password", "password_template.html"),
    ("percent", "percent_template.html"),
    ("phone", "phone_template.html"),
    ("real", "real_template.html"),
    ("text", "text_template.html"),
    ("textarea", "textarea_template.html"),
    ("time", "time_template.html"),
    ("timestamp", "timestamp_template.html"),
    ("toggle", "o_slide_toggle.html")

Custom Templates

Ontimize templates can be modified in the local /templates directory. There are a few examples of using advanced template customizations. Once the local template is changed use the 'als app-build --app={myApp}' to rebuild your entire app. If you wish to preserve your prior customizations, we suggest building a new application and merge changes back into your customized Ontimize app.
