Admin Architecture

💡 TL;DR - instant multi-page, multi-table apps

Feature Provides Example
Multi-Page List/Show pages for each table
Built-in search, sort, export		 Customer Page, Order Page, etc
Multi-Table Tab Sheet for related child data
Page Transitions for related data		 Customer page has OrderList
Click --> Order/OrderDetails
Automatic Joins for Parent Data Product Name - not just the Id
Lookups for foreign keys Find Product for OrderDetail
Declarative hide/show Salaried Employee: Hide Union
Customize Simple - no HTML / JavaScript Edit ui/admin/admin.yaml
Extend Build Custom UIs with your own framework, using the API API-enforced logic simplifies app dev

This page describes the Admin App architecture.


Uses Global React Admin

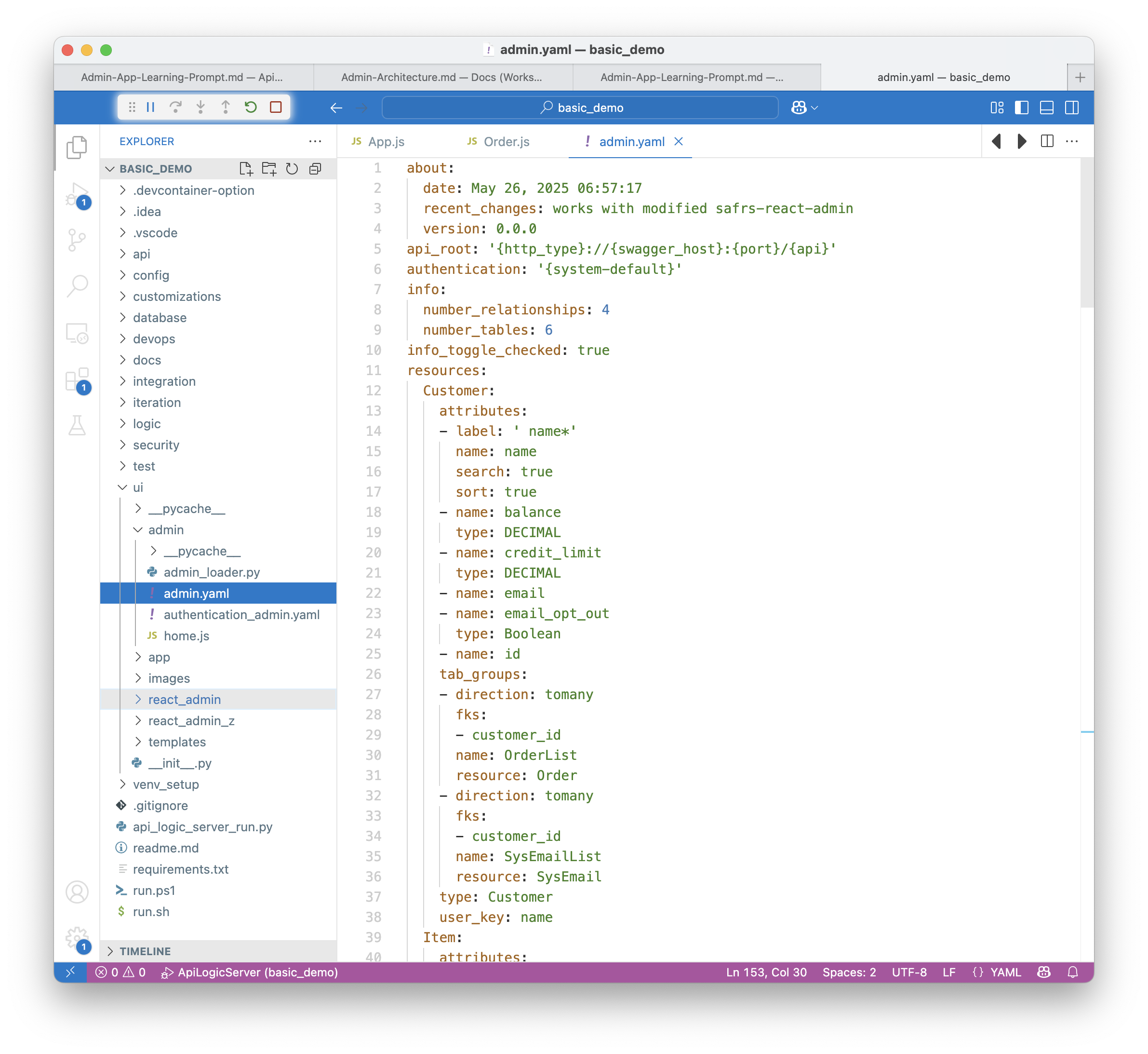

The admin "app" created in your project is just a yaml file. It is interpreted by a React Admin app (SAFRS React Admin - SRA by Thomas Pollet) that is part of the API Logic Server install, eg:

venv/lib/python3.12/site-packages/api_logic_server_cli/create_from_model/safrs-react-admin-npm-build

This contains the SRA code and the many react libraries it uses.


Customized Apps

The objective of the Admin App is to create an highly functional app instantly, easily customized via the yaml (instead of more complex HTML, JS, CSS, etc).

To create a more customized app, you can:

  • Use the Automatic Custom Apps, or
  • Create your own custom app using the API - by manual coding, or using Generative AI ("Vibe")


Generative AI App Learning

A close approximation of the automatic Admin App can be generated with GenAI, using this prompt:

Context

Generate a full React Admin application using the following instructions.
The result must be a runnable React app (npm start) that connects to the supplied JSON:API, with fully implemented components (no placeholders or empty files).

App Features

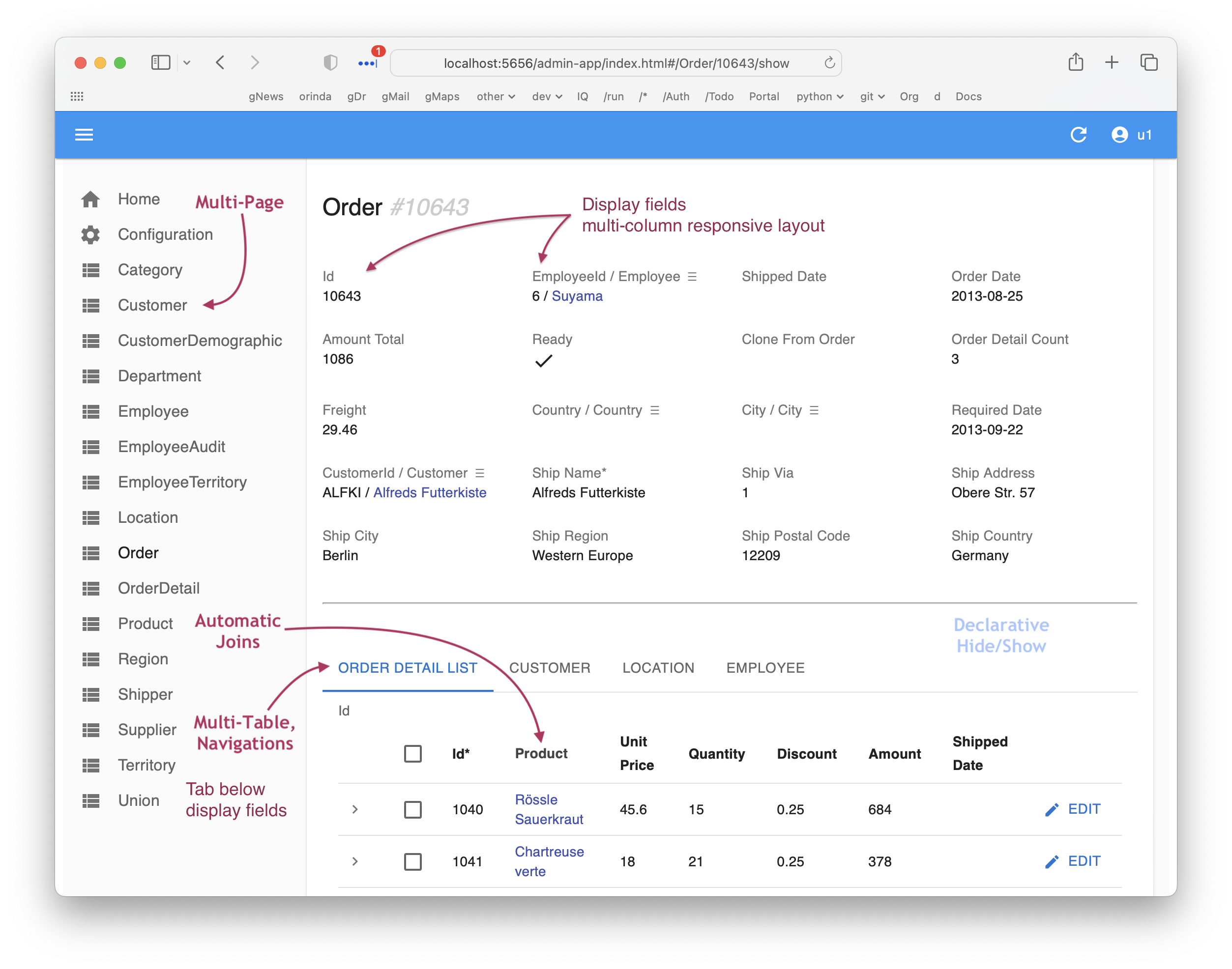

Here is a sample App Page:

sample-learning

Multi-Page

For each resource: - Create a List page showing 7 user-friendly columns - Add pagination, sorting, and filtering - Link each row to a Display (Show) page

Multi-Resource

Each Display Page should: - Show all fields in a multi-column layout - Include a tab sheet (<TabbedShowLayout>) for each related resource using <ReferenceManyField> - Link child rows to their own display page

Example:
- Customer Display has tab for OrderList
- Each Order in the tab links to Order Display

Automatic Joins

For foreign keys: - Display joined value (e.g., product.name instead of product_id) - Use first string field from parent table containing name, title, or description

Numeric Primary key fields: - Display at the end of forms/lists

Lookups (Foreign Keys)

For foreign key fields: - Provide auto-complete dropdown (<ReferenceInput>) - For numeric foreign keys, use the joined string field as lookup text

Implementation

Architecture
  • Framework: React 18 + react-admin 4.x
  • Data Provider: Custom dataProvider.js using fetchUtils (no external ra-jsonapi-client)
  • Must support: getList, getOne, getMany, getManyReference, create, update, delete
  • Must support: filters, joins, sorting, pagination
  • Backend: JSON:API per mcp_discovery.json
  • CORS: Ensure API allows http://localhost:3000
    from flask_cors import CORS
CORS(app, origins='*')  # or restrict to localhost:3000
  • Project Setup:
  • Use create-react-app
  • Include: react-admin, @mui/material, @emotion/react, @emotion/styled, react-router-dom
  • Do not use any deprecated or unmaintained libraries
  • Include complete and correct App.js, index.js, dataProvider.js, and index.html
Per-Resource Files (Required)

For each resource (Customer, Order etc): - Create a source file under src/, e.g., Customer.js - Each file must fully implement: - CustomerList - CustomerShow - CustomerCreate - CustomerEdit

Use: - <ReferenceField> for foreign key displays - <ReferenceInput> for foreign key input - <ReferenceManyField> for tabbed child lists - <TabbedShowLayout> for display pages

Do not leave any file empty.

App Wiring

In App.js: - Import each resource file using:

import { CustomerList, CustomerShow, CustomerCreate, CustomerEdit } from './Customer';
  • Register them in <Admin> using:
<Resource name="Customer" list={CustomerList} show={CustomerShow} edit={CustomerEdit} create={CustomerCreate} />
  • import data provider (pre-supplied in src):
import { dataProvider } from './dataProvider';

Do Not generate either:

import jsonServerProvider from 'ra-data-json-server'
const dataProvider = jsonServerProvider('http://api.example.com');

Response Format

Format the response as a JSResponseFormat:

class JSResponseFormat(BaseModel): # must match system/genai/prompt_inserts/response_format.prompt code : str # generated javascript code (only)


GenAI Resources

If you are using Generative AI:

  • Create docs/mcp_learning/mcp_discovery.json as the output of mcp_discovery, and provide that to your Generative AI tool. To obtain your discovery:
curl -X GET "http://localhost:5656/.well-known/mcp.json"
Here is an example of MCP Discovery:
{
  "base_url": "http://localhost:5656/api",
  "authorization_url": "http://localhost:5656/api/auth/login",
  "description": "API Logic Project: basic_demo",
  "learning": "To issue one request per row from a prior step (fan-out), use the syntax:\n\n\"$<stepIndex>[*].<fieldName>\"\n\nFor example, if step 0 returns orders, and you want to send a POST per customer:\n\nBefore (incorrect):\n    \"customer_id\": \"{customer_id}\"\n\nAfter (correct):\n    \"customer_id\": \"$0[*].customer_id\"\n    \nOnly if 'email' is in the Natural language query, send email by issing a POST request to the SysEmail endpoint, setting the subject, message and customer_id in the body.   DO NOT include a POST unless the word \u2018email\u2019 appears in the user query.\n\nFormat response as mcp_responseFormat.\n\n<mcp_responseFormat>\nclass QueryParam(BaseModel):\n    name: str  # attribute name\n    op: str  # eq, lt, gt\n    val: str\n\nclass JsonValues(BaseMopdel):\n    name: str  # name of attribute\n    value: str # value of attribute\n\nclass Resource(BaseModel):\n    tool_type: str\n    base_url: str\n    path: str # specified use case or requirement name (use 'General' if missing)\n    method: str # GET, PATCH, POST or DELETE\n    body: json # data for PATCH or POST\n    query_params: List(QueryParam) # filter for GET\n\nclass MCPResult(BaseModel):  # must match system/genai/prompt_inserts/response_format.prompt\n    schema_version: str\n    resources : List[Resource] # list resources\n\n<mcp_responseFormat/>\n",
  "resources": [
    {
      "fields": [
        "id",
        "name",
        "balance",
        "credit_limit",
        "email",
        "email_opt_out"
      ],
      "filterable": [
        "id",
        "name",
        "balance",
        "credit_limit",
        "email",
        "email_opt_out"
      ],
      "methods": [
        "GET",
        "PATCH",
        "POST",
        "DELETE"
      ],
      "name": "Customer",
      "path": "/Customer"
    },
    {
      "fields": [
        "id",
        "order_id",
        "product_id",
        "quantity",
        "amount",
        "unit_price"
      ],
      "filterable": [
        "id",
        "order_id",
        "product_id",
        "quantity",
        "amount",
        "unit_price"
      ],
      "methods": [
        "GET",
        "PATCH",
        "POST",
        "DELETE"
      ],
      "name": "Item",
      "path": "/Item"
    },
    {
      "fields": [
        "id",
        "notes",
        "customer_id",
        "CreatedOn",
        "date_shipped",
        "amount_total"
      ],
      "filterable": [
        "id",
        "notes",
        "customer_id",
        "CreatedOn",
        "date_shipped",
        "amount_total"
      ],
      "methods": [
        "GET",
        "PATCH",
        "POST",
        "DELETE"
      ],
      "name": "Order",
      "path": "/Order"
    },
    {
      "fields": [
        "id",
        "name",
        "unit_price"
      ],
      "filterable": [
        "id",
        "name",
        "unit_price"
      ],
      "methods": [
        "GET",
        "PATCH",
        "POST",
        "DELETE"
      ],
      "name": "Product",
      "path": "/Product"
    }
  ],
  "schema_version": "1.0",
  "tool_type": "json-api"
}
  • In addition, provide the schema (docs/db.dbml)
Here is an example of the schema:
// Copy this text, paste to https://dbdiagram.io/d
// Or, https://databasediagram.com/app
// Or, view in VSCode with extension: "DBML Live Preview"

Table Customer {
    id INTEGER [primary key]
    name VARCHAR
    balance DECIMAL
    credit_limit DECIMAL
    email VARCHAR
    email_opt_out BOOLEAN
    }

Table Item {
    id INTEGER [primary key]
    order_id INTEGER
    product_id INTEGER
    quantity INTEGER
    amount DECIMAL
    unit_price DECIMAL
    }

Table Order {
    id INTEGER [primary key]
    notes VARCHAR
    customer_id INTEGER
    CreatedOn DATE
    date_shipped DATE
    amount_total DECIMAL
    }

Table Product {
    id INTEGER [primary key]
    name VARCHAR
    unit_price DECIMAL
    }



// Relationships
    Ref: Item.(order_id) < Order.(id)
    Ref: Item.(product_id) < Product.(id)
    Ref: Order.(customer_id) < Customer.(id)
