App Learning

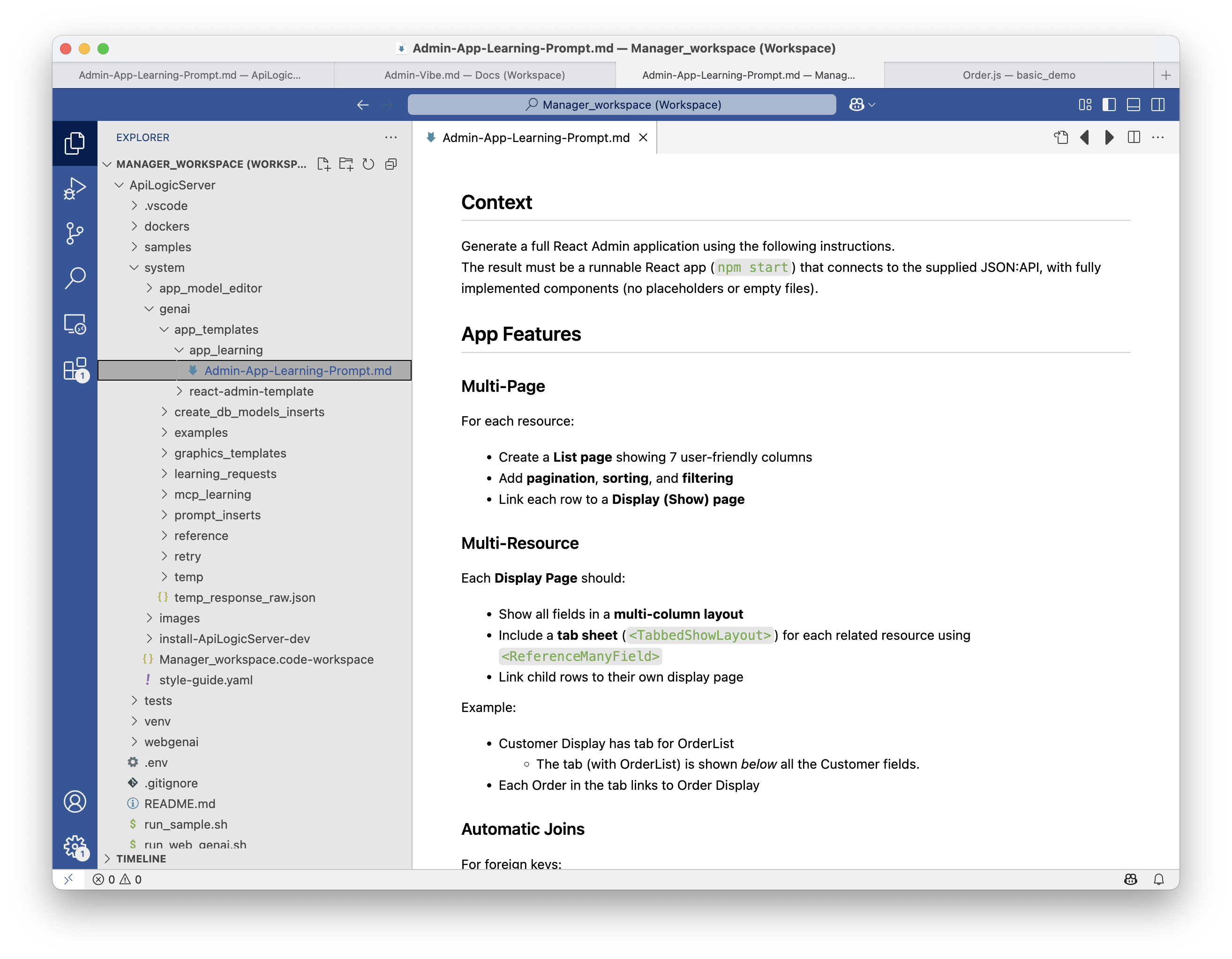

The GenAI process uses this for learning. It is part of the Manager so you can customize it:
Context
Generate a full React Admin application using the following instructions.
The result must be a runnable React app (npm start
) that connects to the supplied JSON:API, with fully implemented components (no placeholders or empty files).
App Features
Multi-Page
For each resource:
- Create a List page showing 7 user-friendly columns
- Add pagination, sorting, and filtering
- Link each row to a Display (Show) page
Multi-Resource
Each Display Page should:
- Show all fields in a multi-column layout
- Include a tab sheet (
<TabbedShowLayout>
) for each related resource using<ReferenceManyField>
- Link child rows to their own display page
Example:
-
Customer Display has tab for OrderList
-
The tab (with OrderList) is shown below all the Customer fields.
- Each Order in the tab links to Order Display
Automatic Joins
For foreign keys:
- Display joined value (e.g.,
product.name
instead ofproduct_id
) - Use first string field from parent table containing
name
,title
, ordescription
Numeric Primary key fields:
- Display at the end of forms/lists
Lookups (Foreign Keys)
For foreign key fields:
- Provide auto-complete dropdown (
<ReferenceInput>
) - For numeric foreign keys, use the joined string field as lookup text
Cascade Add
When adding a child row as a detail in a Master / Detail, default the Foreign Key to the Parent (Master) Primary Key.
Implementation
Architecture
- Framework: React 18 + react-admin 4.x
-
Data Provider: Custom
dataProvider.js
usingfetchUtils
(no externalra-jsonapi-client
) -
Must support:
getList
,getOne
,getMany
,getManyReference
,create
,update
,delete
-
Must support: filters, joins, sorting, pagination
-
Backend: JSON:API per
mcp_discovery.json
- CORS: Ensure API allows
http://localhost:3000
- Use
create-react-app
- Include:
react-admin
,@mui/material
,@emotion/react
,@emotion/styled
,react-router-dom
- Do not use any deprecated or unmaintained libraries
- Include complete and correct
App.js
,index.js
,dataProvider.js
, andindex.html
Per-Resource Files (Required)
For each resource (Customer
, Order
etc):
- Create a source file under
src/
, e.g.,Customer.js
- Each file must fully implement:
CustomerList
CustomerShow
CustomerCreate
CustomerEdit
Use:
<ReferenceField>
for foreign key displays<ReferenceInput>
for foreign key input<ReferenceManyField>
for tabbed child lists-
For show pages
-
Always start with
<SimpleShowLayout>
, followed by a<TabbedShowLayout>
for related data- DO NOT start with
<TabbedShowLayout>
- DO NOT start with
Be sure to include all required imports. ALWAYS use the following AS IS, plus whatever else is required:
import { List, FunctionField, Datagrid, TextField, DateField, NumberField, ReferenceField, ReferenceManyField, Show, TabbedShowLayout, Tab, SimpleShowLayout, TextInput, NumberInput, DateTimeInput, ReferenceInput, SelectInput, Create, SimpleForm, Edit, Filter, Pagination, BooleanField, BooleanInput } from 'react-admin';
DO NOT use <EmailInput>
- use <TextInput>
.
DO NOT put <ReferenceField>
in <Datagrid>
.
Do not leave any file empty.
App Wiring
Sample code for App.js
:
import React from 'react';
import { Admin, Resource } from 'react-admin';
import { createTheme } from '@mui/material/styles';
// import each resource
import { CustomerList, CustomerShow, CustomerCreate, CustomerEdit } from './Customer';
...
// import the data provider
import { dataProvider } from './dataProvider';
const theme = createTheme({
palette: {
primary: { main: '#1976d2' }, // Material-UI default blue
secondary: { main: '#1565c0' }, // A darker blue, or choose another color
},
typography: { fontSize: 14 },
});
const App = () => {
return (
<Admin dataProvider={dataProvider}> // register each resource...
<Resource name="Customer" list={CustomerList} show={CustomerShow} edit={CustomerEdit} create={CustomerCreate} />
...
</Admin>
);
};
export default App;
For dataProvider:
- be sure it includes the braces:
import { dataProvider }
- Do Not generate either:
import jsonServerProvider from 'ra-data-json-server'
const dataProvider = jsonServerProvider('http://api.example.com');
Response Format
Format the response as a JSResponseFormat:
class JSResponseFormat(BaseModel): # must match system/genai/prompt_inserts/response_format.prompt code : str # generated javascript code (only)
